PCIe 1.0 x1 1-port eSATA & 1-port SATA II 3 Gbps & 1-port PATA Combo Controller Card
PCIe 1.0 x1 1-port eSATA & 1-port SATA II 3 Gbps & 1-port PATA Combo Controller Card

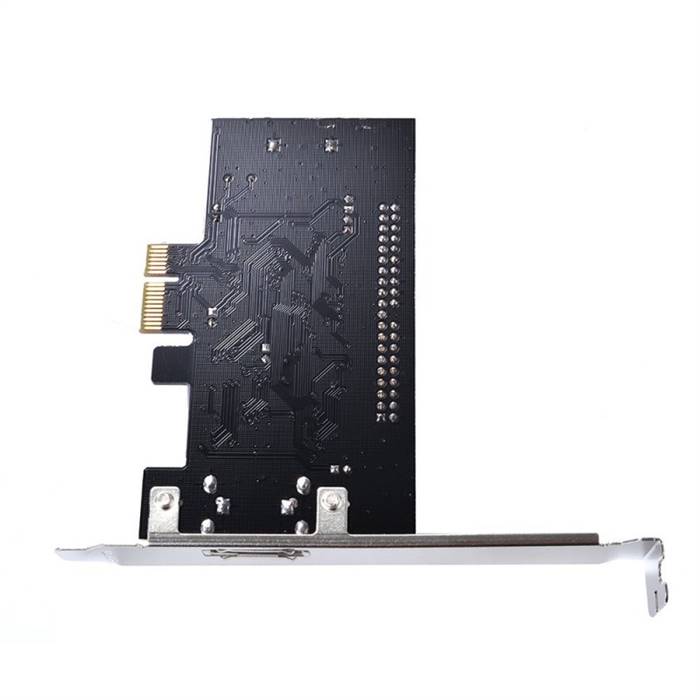

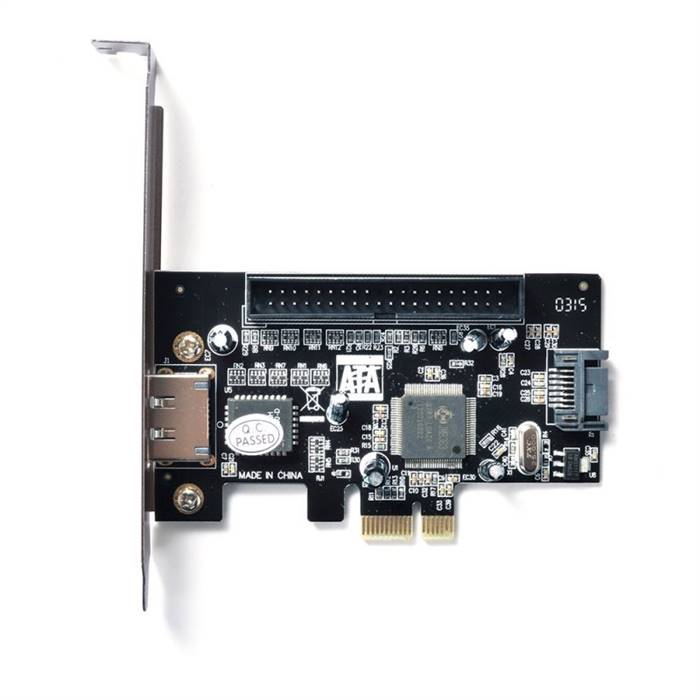

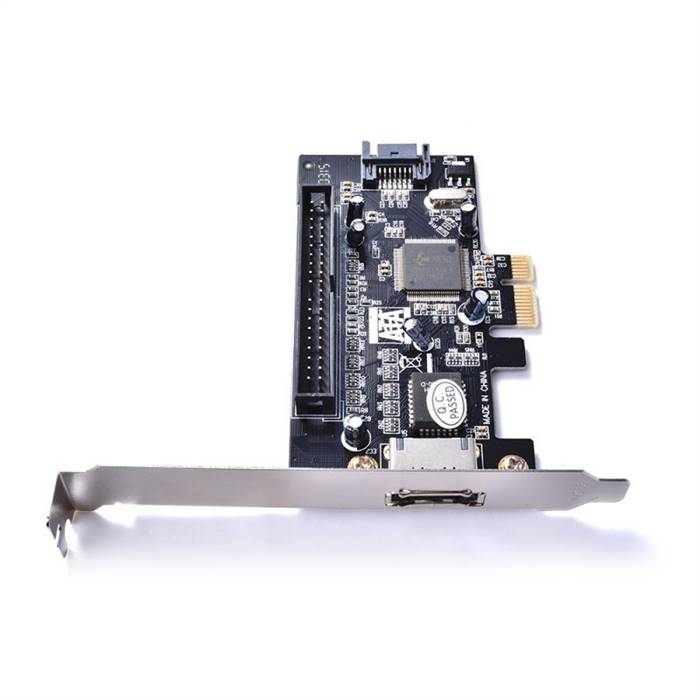

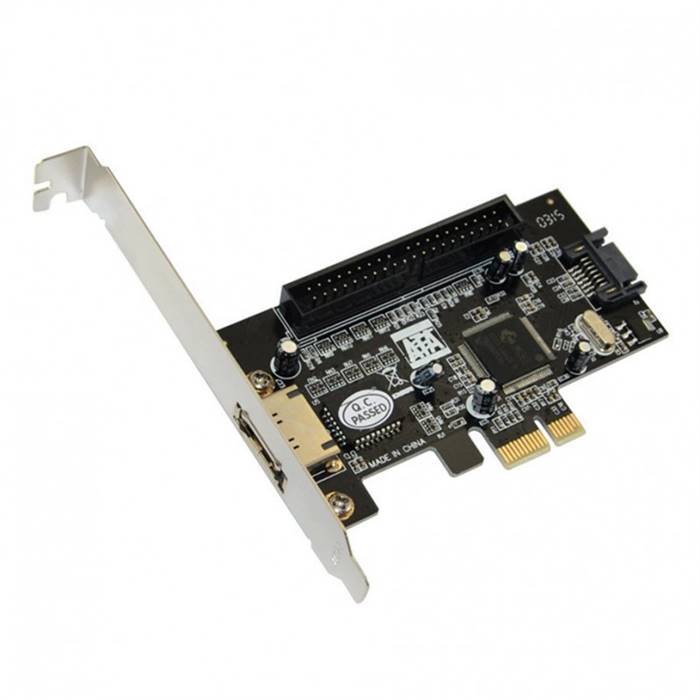

Alternative Views:
Our Price: $10.00
Warranty: 1 Year Warranty


Product Code: PX1-S2-2S1P
Qty:

Description


This PX1-S2-2S1P PCI Express SATA/PATA Combo Controller Adapter Card lets you add two Serial ATA (SATA) II (one internal, one external) and one Parallel-ATA (PATA) channels to a computer through a single PCIe slot. The SATA/PATA combo adapter card offers a hardware RAID solution with support for RAID 0, RAID 1 and JBOD, allowing you to configure your SATA drives to meet individual storage needs.

PX1-S2-2S1P equips high-performance native PCI Express chipset which supports all Serial ATA II features, including 3.0 Gbps SATA II transfer speeds and Native Command Queuing (NCQ). The adapter card is the best solution for users to integrate both traditional PATA (IDE) and new-generation SATA storage devices with 0, 1, 0+1, JBOD RAID function, such as hard disk drives, CD-RW and DVD-ROM drives.

Features

  • Supports SATA II data transfer rate up to 300Mbps
  • Connect two SATA drives on independent channels and up to two PATA(IDE) devices
  • Compliant with one-lane 2.5Gb/s PCI Express specification
  • Supports Native Command Queue (NCQ) on SATA II ports
  • Supports Hot Plugging like USB on SATA port
  • Supports RAID 0, RAID 1, and JBOD
  • Supports up to UDMA6 transfer mode of PATA
  • Ultra ATA-133 / IDE interface with data transfer rate up to 133Mbps

Applications

  • Great for use with Serial ATA, ATAPI devices, ATA/133, ATA/100, ATA/66, ATA/33, EIDE and IDE storage devices (DVD CD-ROM, CD-RW, hard drives)
  • Ideal for institutions and individuals using both IDE and Serial ATA drives on the same system

Specifications

  • Chipset: JMicron JMB363
  • Bus Type: PCIe 1.0 x1
  • Connector
    • 1 x Internal SATA (7 pin, Data)
    • 1 x External eSATA (7 pin, Data)
    • 1 x IDE (40 Pin, EIDE/PATA)
  • Data Rate
    • eSATA / SATA up to 3.0 GB/s
    • PATA(IDE) up to 133 Mbps
  • Raid Array
    • Supports RAID 0 、 RAID 1 、 RAID 0+1 and JBOD
    • Supports Hot Plug, Native Command Queue(NCQ)
  • OS Compatibility
    • Windows 98SE/ ME/ 2000/ XP (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
    • Mac OS 10.4/ 10.5
    • Linux
  • Certifications: CE, FCC, RoHS

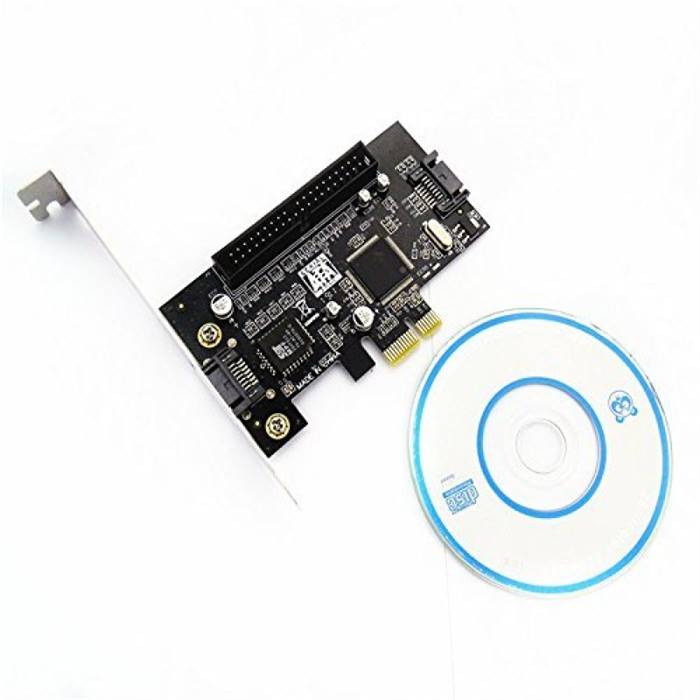

Package Contents

  • PCIe SATA II 300 + PATA Raid Card
  • Driver CD
  • Instruction Manual
