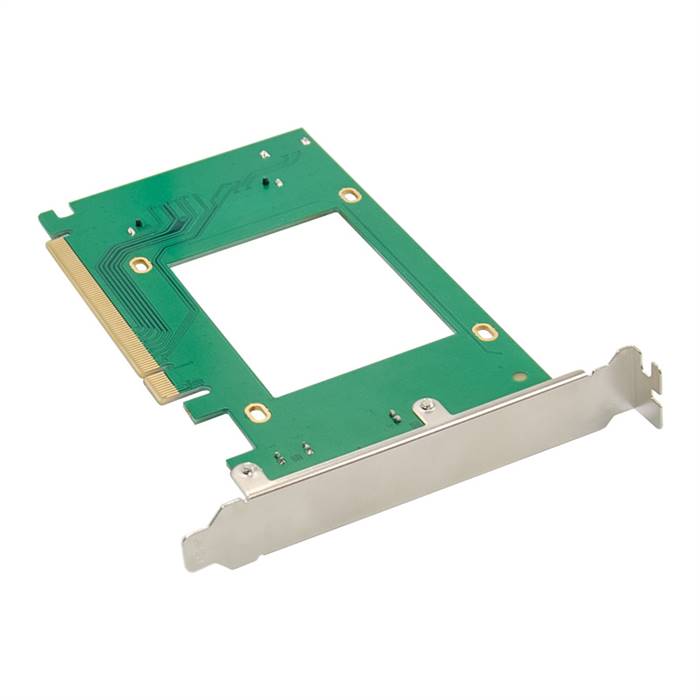

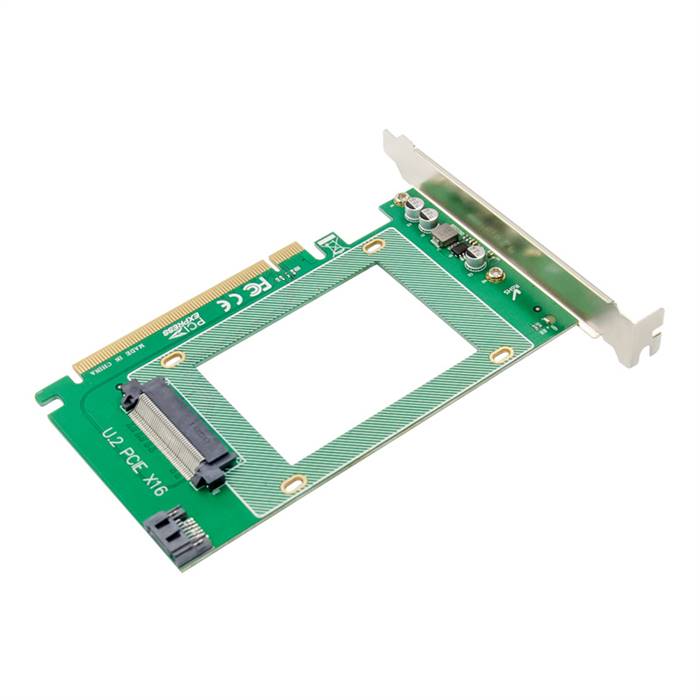

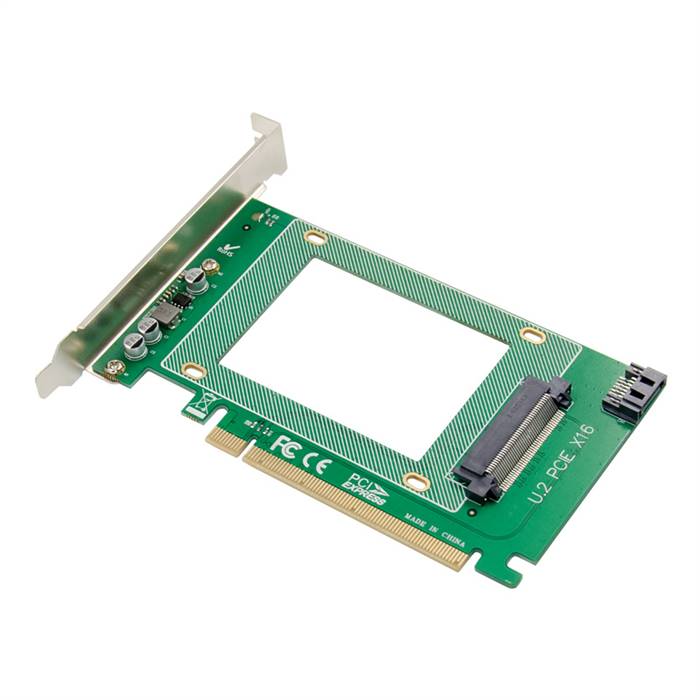

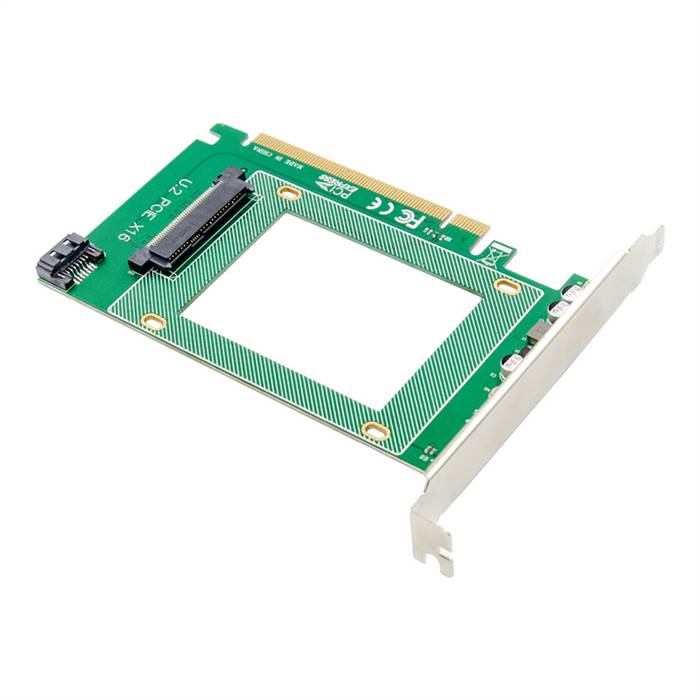

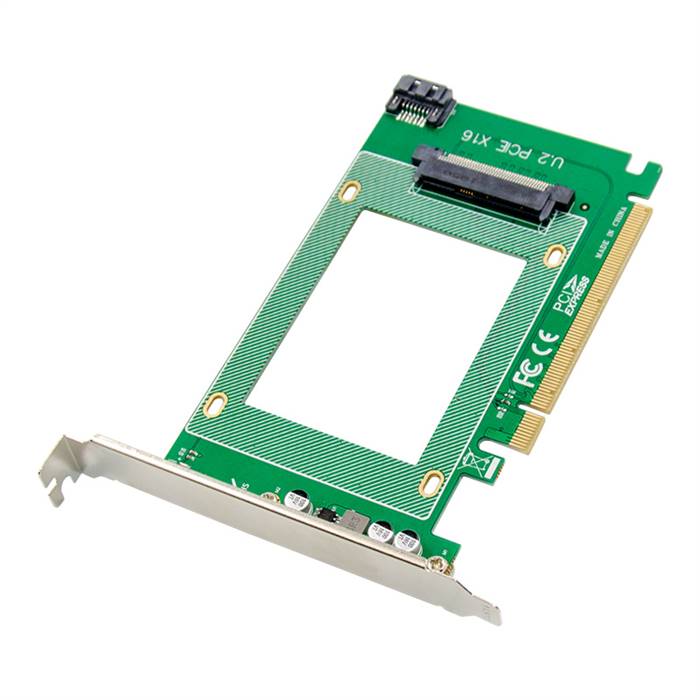

The PCIe 3.0 x16 1-port Drive Adapter for 2.5-in U.2 SFF8639 NVMe SSD or 2.5-in SATA Drive allows you to install a 2.5" PCIe-NVMe U.2 SSD drive (such as Intel 750 U.2 SFF) on a PCI Express 3.0 x16 slot to your PC System without any cables. It's the best and easy solution to install an extremely high performance enterprise-class PCIe-NVMe U.2 SSD in your desktop for enthusiast gaming and workstation markets.

The adapter can also install a standard 2.5" SATA III Drive (HDD/SSD). The 2.5" SATA Drive is directly powered by the PCIe slot, but the data is not pass-through the PCIe slot. A SATA cable is required to connect the SATA port of the adapter and a free SATA port on the motherboard.

U.2 NVMe SSD connects directly to the SFF-8639 connector of the adapter, and the adapter connects directly to the computer motherboard. No need for SATA cable. The adapter is compatible with PCIe 3.0 motherboards and backward compatible with PCIe 2.0 and PCIe 1.0.

Features

• Support PCIe Gen3, PCIe Gen2, PCIe Gen1
• Suggest to use with PCIe Gen3 slot for high performance
• Integrated high-speed signal enhancement technique, full speed transmission
• Accurate solid structure design
• Support U.2 NVME SSD and SATA III Drive
• Long running stability and can work under wide temperature
• PCIe 3.0 x16 design, from the underlying technology to ensure full speed
• OS independent with no drivers required, for a fast, hassle-free setup

Specifications

• Host Bus: PCI Express 3.0 x16
• Drive Connector: U.2 SFF-8639
• Drive Supported
  • U.2 NVME SSD
  • SATA III Drive
• Drive Size: 2.5 inch
• Hardware Raid Supported: No
• Hot Swap Capability: No
• OS Compatibility: OS independent; No software or drivers required
• Environmental
  • Operating Temperature: 5°C to 50°C (41°F to 122°F)
  • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
  • Humidity: 15% ~ 90% RH

Package Contents

• 1 x PCIe 3.0 x16 1-port Drive Adapter for 2.5-in U.2 SFF8639 NVMe SSD or 2.5-in SATA Drive
• 1 x SATA III Cable
• 1 x Mounting Screws
• 1 x Screw Driver
