The Intel JL82576EB chipset Gigabit Ethernet network adapters are designed with performance enhancing features and new power management technologies.

Features

• Halogen-free dual Gigabit Ethernet adapters with copper interface options
• Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
• Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
• Scalable iSCSI performance delivering cost-effective SAN connectivity
• High-performing bridgeless design supporting PCI Express* Gen 1.1 2.5GT/s
• Reliable and proven Gigabit Ethernet technology
• High-performing, 10/100/1000 Ethernet connection
• Reliable and proven Gigabit Ethernet technology from Intel Corporation
• Scalable PCI Express* interface provides dedicated I/O bandwidth for I/O-intensive networking applications
• Optimized for virtualized environments
• Flexibility with iSCSI Boot and choice of dual- and quad-port adapters in both fiber and copper

Specifications

• Chipset: Intel®JL82576EB
• Bus Type: PCI Express* 1.1 (2.5GT/s) x4
• Ports: 2 * SFP slots
• Data Rate: 1000 Mbps
• Cabling
• Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
• IEEE Standard / Network topology
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
• OS Compatibility
  • Windows Server 2003 / Server 2008 / R2 / Server 2012 / R2
  • Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
  • DOS, Linux, FreeBSD, Novell, UnixWare / OpenUnix 8
• Applicable Fields: Desktops, Servers, Workstations
• Hardware
  • Power: 3.6 W
  • Certifications: FCC, CE, RoHS
  • Metal Bracket: Full-height end bracket / Low-profile end bracket
  • LED Indicators: Green=1 Gb/s. Not illuminated=no link
• Environmental
  • Operating Temperature: 0 ~ 55 ℃ (32 ~ 131℉)
  • Storage Temperature: -40 ~ 70 ℃ (-40 ~ 158 ℉)
  • Storage Humidity: 90% Non-condensing relative humidity at 35 ℃

Package Contents

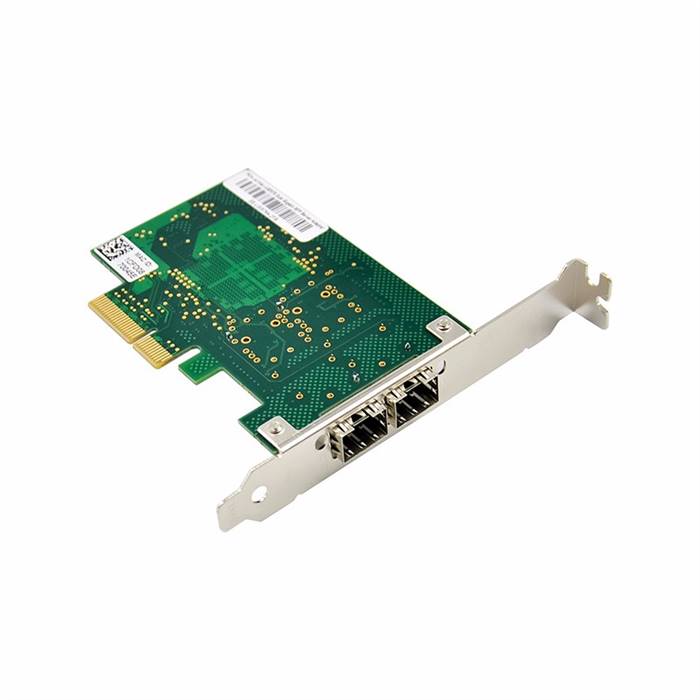

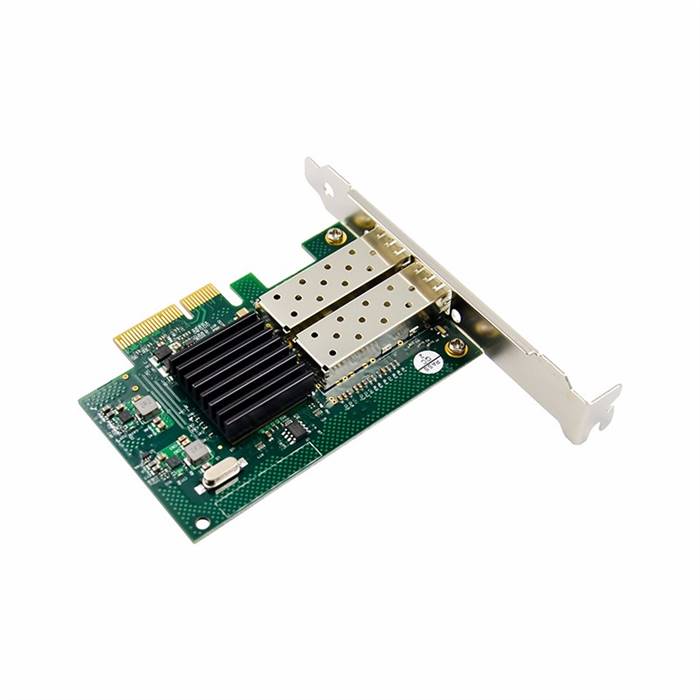

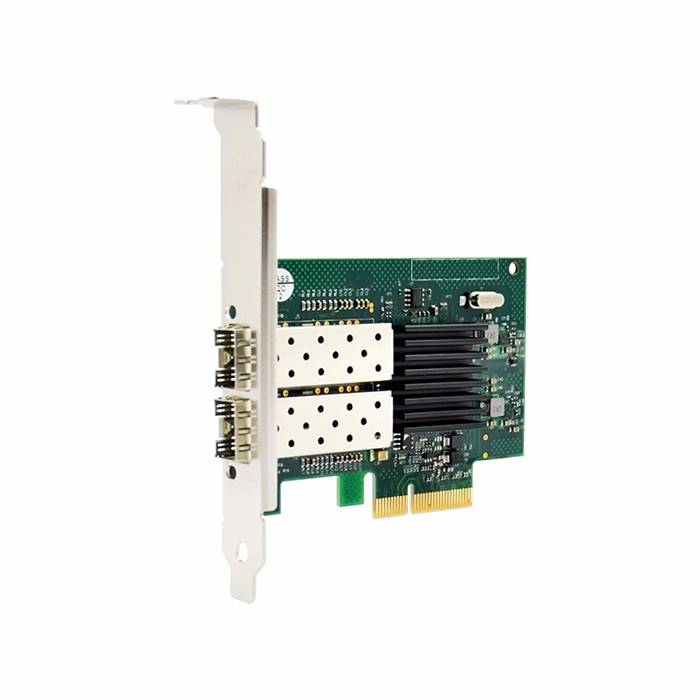

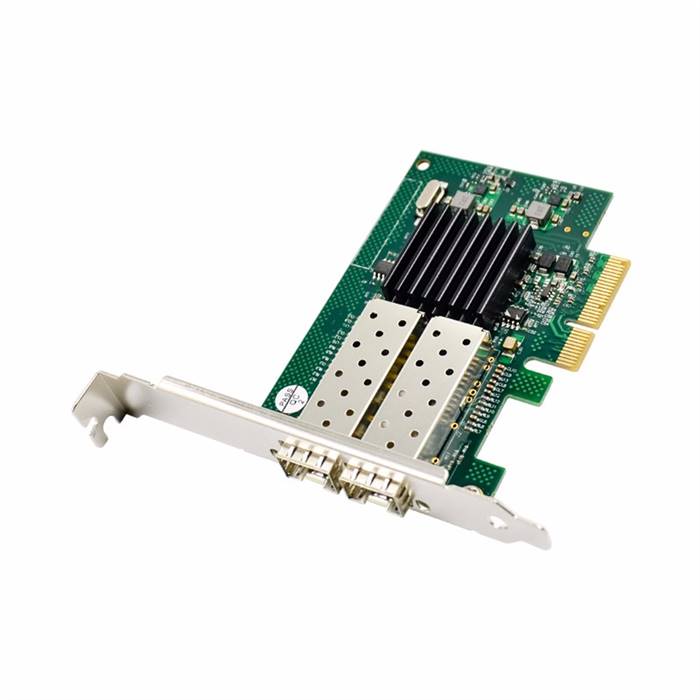

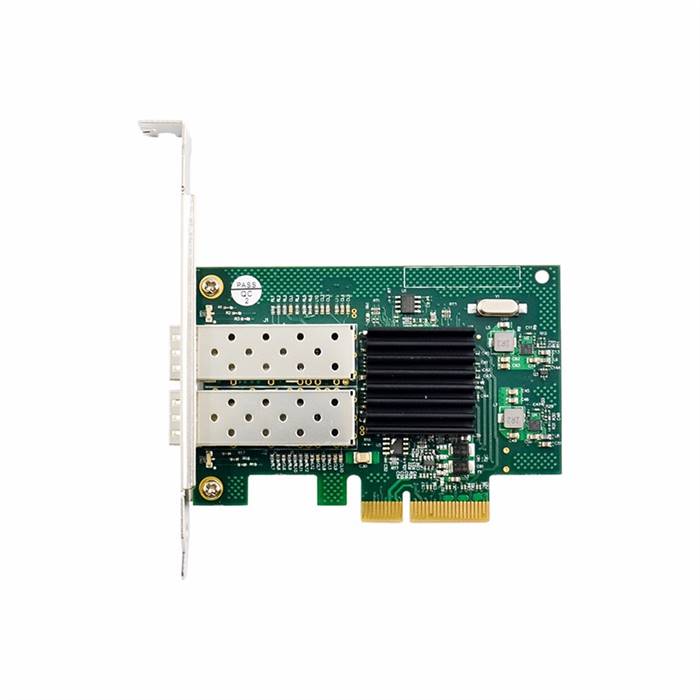

• 1 * PCIE JL82576EB Dual SFP Fiber Server NICs
• 1 * User's Manual
• 1 * Driver CD
• 1 * Low profile bracket
