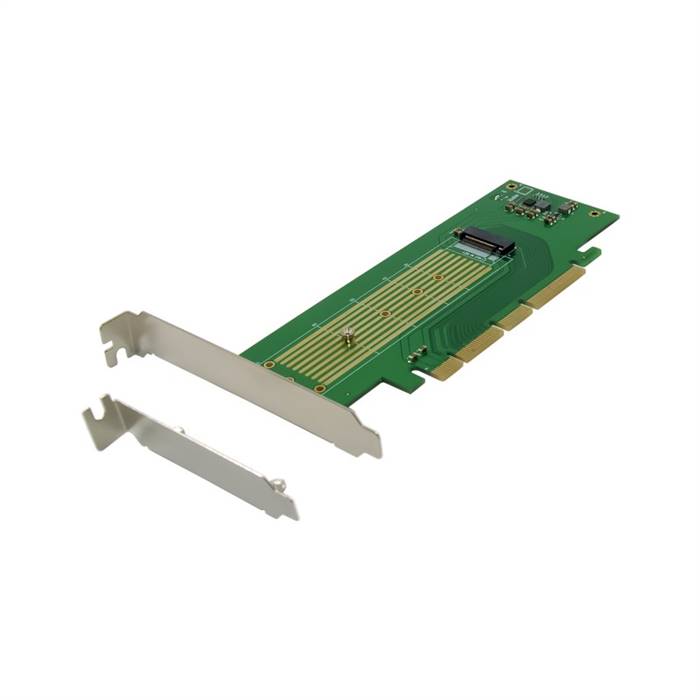

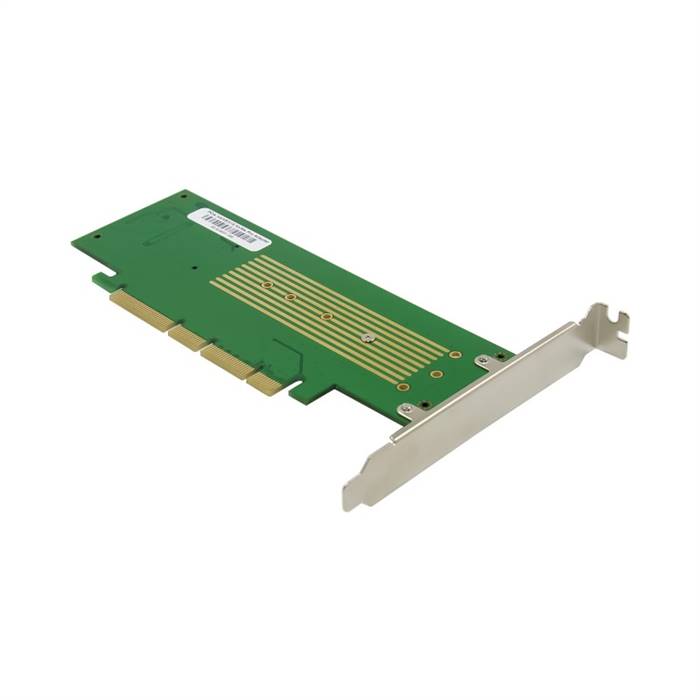

The PCIe 3.0 x4 / x8 / x16 1-port M.2 M-key NVMe SSD Adapter Card with aluminum heat sink is the perfect solution for faster transfer speeds. It allows adding NVMe SSD Hard Drive to your PC Desktop at perfect performance. The card is compatible with M.2 SSDs (PCI-e NVMe) of sizes: 110x22mm, 80x22mm, 60x22mm and 42x22mm. Designed with Heat Sink up-cover, it will strengthen the effect of heat dissipation to protect your NVMe SSD well.

Features

• Bus Type: PCIe 3.0 x16/x8/x4 slot
• SSD form factor: M.2 M-Key (NOT compatible with B-Key SSD)
• SSD Bus interface: NVMe (NOT compatible with SATA M.2 SSD)
• Compatible Sizes: 2230 / 2242 / 2260 / 2280 / 22110. NOTE: It will not fit the PCIe x1 slot
• All necessary screws are included.
• System requirements:
  • A computer and BIOS (usually set to AHCI) compatible with NVMe SSD over PCIe lanes.
  • Windows 7 with Microsoft's Hotfixes for NVMe SSD, Windows 8 and above, Linux.
  • If after installation you get a yellow exclamation mark under the Device Manager, you may need to get an additional driver from your SSD's manufacturer.

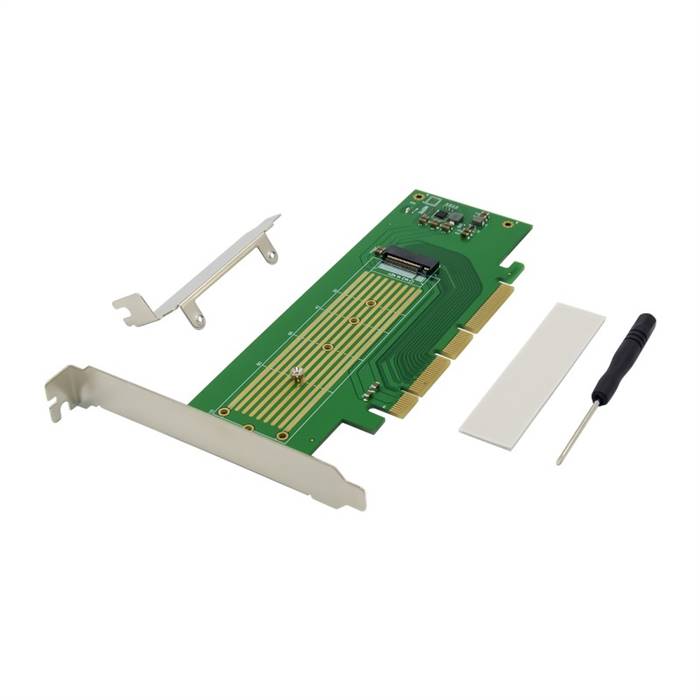

Package Contents

• PCIe 3.0 x4 x8 x16 1-port M.2 M-key NVMe SSD Adapter Card (SSD is NOT included).
• Low Profile Bracket
• Heat Sink
• Screwdriver and mounting screw
