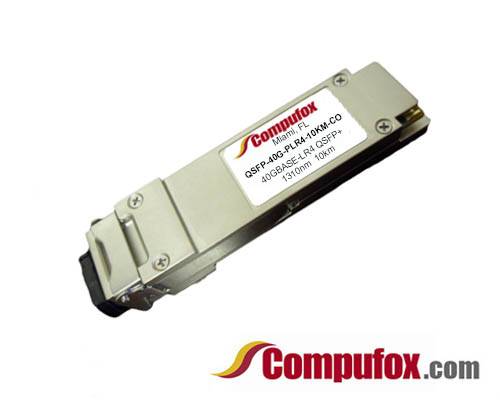

QSFP-40G-PLR4-10KM | 40G QSFP+ Optical Transceiver
QSFP-40G-PLR4-10KM | 40G QSFP+ Optical Transceiver

Our Price: $275.00

Warranty: 1 Year Warranty


Product Code: QSFP-40G-PLR4-10KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

40GBase-PLR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, MTP/MPO, DOM).

Specifications

Form Factor QSFP+ Max. Data Rate 44.4Gbps (4x 11.1Gbps)
Wavelength 1310nm Max. Transmission Distance 10km
Connector MTP/MPO-12 Male Media SMF
Transmitter Type 4x DFB Receiver Type PIN
TX Power -6~-1dBm Receiver Sensitivity <-14.4dBm
Power Budget 8.4dB Receiver Overload 0.5dBm
Max. Power Consumption ≤2.5W Core Size 9um
Extinction Ratio >4.5dB Modulation NRZ
Host FEC Supported Bit Error Ratio (BER) 1E-12
Operating Temperature 0 to 70°C (32 to 158°F) Protocols 40G Ethernet, MSA Compliant
