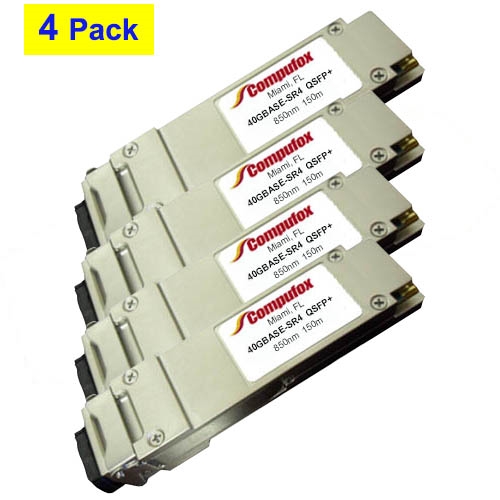

4 Pack 40GBase-SR4 QSFP+ Optical Transceiver
4 Pack 40GBase-SR4 QSFP+ Optical Transceiver



Our Price: $156.00

Warranty: 1 Year Warranty


Product Code: QSFP-40G-SR4-150M-4PK

Equipment where Transceiver will be Installed

Select Brand:


Compatibility:


Labeling Options:
Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description Connectivity

4 Pack - 40GBase-SR4 QSFP+ Optical Transceiver Module (MMF, 850nm, 150m, MTP/MPO, DOM).

Features:

Form Factor QSFP+

Data Rate 40G

Wavelength 850nm*

Cable Distance* 150m@OM4/100m@OM3*

Connector MTP/MPO-12 Male

Cable Type MMF

Transmitter Type VCSEL

Receiver Type PIN

TX Power -7.1~1.9dBm

Receiver Sensitivity <-10.3dBm

Power Budget 3.5dB

Receiver Overload 2.4dBm

Power Consumption <1.5W

Core Size 50um

Extinction Ratio >3dB

Modulation NRZ

Host FEC* Supported

Bit Error Ratio (BER) 1E-12

Commercial Temperature 0 to 70C

Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636

* Lane Center Wavelengths Range 840 - 860nm.
*
Minimum cabling distance is 0.5 meters for -SR4 and -CSR4 modules.
*
Considered an engineered link with maximum 1 decibel loss budget.
* Full 150m via OM4 reach requires the use of FEC on the host platform.
