Cisco QSFP-40G-SR4-S 40GBASE-SR4 QSFP Module for MMF

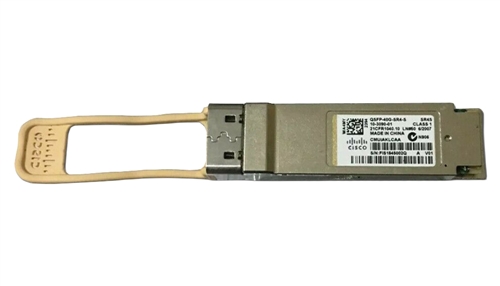

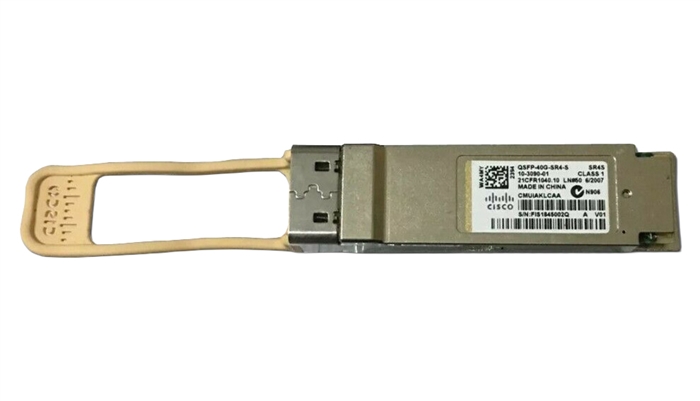

Genuine Cisco QSFP-40G-SR4-S

Our Price: $400.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: QSFP-40G-SR4-S
Qty:

Description

The Cisco 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.

Features and benefits of Cisco QSFP modules
  • Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
  • Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
  • Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
  • High-speed electrical interface compliant to the IEEE 802.3ba standard
  • QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Cisco QSFP-40G-SR4-S (S-Class)

The S-Class Cisco 40GBASE-SR4-S QSFP module supports link lengths of 100 and 150 meters, respectively, on laser-optimized OM3, and OM4/OM5 multimode fibers. QSFP-40G-SR4-S is aligned to IEEE 40GBASE-SR4 optical specifications which support high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. Because the QSFP-40G-SR4-S does not support 4x10G breakout connectivity, see QSFP-40G-SR4 or QSFP-40G-CSR4 for such applications. QSFP-40G-SR4-S does not support FCoE.

Specifications
  • Product number: QSFP-40G-SR4-S
  • Description: Cisco 40GBASE-SR4 QSFP Module for MMF
  • Product Type: 40GBASE-SR4, 4 lanes, 850 nm MMF
  • Connector Type: MPO-12
  • Wavelength: 850nm
  • Cable type: MMF
  • Cable distance:
    • 100m @ OM3
    • 150m @ OM4/OM5
  • Power consumption: 1.5W
  • Pull tab color: Beige
  • Transmit power (dBm)
    • Maximum: 2.4, per lane
    • Minimum: -7.6, per lane
  • Receive power (dBm)
    • Maximum: 2.4, per lane
    • Minimum: -9.5, per lane
  • Transmit and receive wavelength (nm): 840 to 860
  • Operating temperature range: Commercial temperature range: 0 to 70°C (32 to 158°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)

Platform support
Cisco QSFP-40G-SR4-S is supported on a wide range of Cisco equipment.
  • Cisco Nexus 9396PX
  • Cisco Catalyst C9500-24Y4C
  • Cisco Nexus 6000 N6K-C6004-M12Q
  • Cisco Nexus 5000 N55-M4Q
  • Cisco Nexus 6000 N6K-C6001-64T
  • Cisco Nexus 9000 N9K-M12PQ
  • Cisco Nexus 9000 N9K-C9336PQ
  • Cisco Nexus 7000 N7K-M206FQ-23L
  • Cisco Nexus 9000 N9K-X9464PX
  • Cisco Nexus 9000 N9K-C93120TX
  • Cisco Nexus 3000 N3K-3172TQ
  • Cisco Nexus 9000 N9K-C9332PQ
  • Cisco Nexus 9000 N9K-M12PQ
  • Cisco Nexus 9000 N9K-X9536PQ
  • Cisco Nexus 9000 N9K-C92160YC-X
  • Cisco Nexus 5000 N55-M4Q
  • Cisco Nexus 9000 N9K-M6PQ
  • Cisco Nexus 6000 N6004-96Q
  • Cisco Nexus 9000 N9K-C9372PX
  • Cisco Nexus 3000 N3K-3172PQ
  • Cisco Nexus 3000 N3K-C3132Q-X
  • Cisco Nexus 9000 N9K-C9372PX-E
  • Cisco Nexus 9000 N9K-C9372PX
  • Cisco Nexus 3000 N3K-C3064PQ-10GE
  • Cisco Nexus 9000 N9K-C9272Q
  • Cisco Nexus 9000 N9K-M6PQ
  • Cisco Nexus 9000 N9K-X9432C-S
  • Cisco Nexus 9000 N9K-C9372TX
  • Cisco Nexus 3000 N3K-C3016Q
  • Cisco Nexus 5000 N5K-C56128P
  • Cisco Nexus 3000 N3K-C3064X
  • Cisco Nexus 9000 N9K-M6PQ-E
  • Cisco Nexus 9000 N9K-X9736PQ
  • Cisco Nexus 9000 N9K-C93120TX
  • Cisco Nexus 9000 N9K-X9564PX (uplinks)
  • Cisco Nexus 9000 N9K-C9372TX-E
  • Cisco ASR 9000 A9K-MPA-1X40GE
  • Cisco Nexus 9000 N9K-C9372TX-E
  • Cisco Nexus 9000 N9K-X9636PQ
  • Cisco Nexus 2000 N2K-2348UPQ
  • Cisco Nexus 9000 N9K-X9432PQ
  • Cisco Nexus 7000 N77-F324FQ-25
  • Cisco A9K-MPA-2X40GE
  • Cisco Nexus 9000 N9K-M6PQ-E
  • Cisco NCS-5501
  • Cisco Nexus 92304QC
  • Cisco Nexus 2000 N2K- 2332TQ
  • Cisco Nexus 9000 N9K-X9464TX
  • Cisco Nexus 6000 N6004-B-24Q
  • Cisco Nexus 7000 N7K-M202CF-22L
  • Cisco Nexus 3000 N3K-C3064-32T
  • Cisco Nexus 2000 N2K-2348TQ
  • Cisco Nexus 3000 N3K-3172PQ
  • Cisco Nexus 9000 N9K-M6PQ-E
  • Cisco Nexus 3000 N3K-C31128PQ-10GE
  • Cisco Nexus 9300-EX Series 93180YC-EX
  • Cisco Nexus 2000 N2K-C2248PQ
  • Cisco Nexus 5000 N5K-C5672UP
  • Cisco Nexus 9000 N9K-C9372PX-E
  • Cisco Nexus 9000 N9K-C9332PQ
  • Cisco Nexus 3000 N3K-C3064PQ
  • Cisco Nexus 5000 N5K-C5672UP
  • Cisco Nexus 3000 N3K-C3064T
  • Cisco Nexus 6000 N6K-C6001-64P
  • Cisco Nexus 9000 N9K-X9564TX (uplinks)
