QSFPDD-ER8-400G | Dell Compatible 400G QSFP-DD Optical Transceiver

Home > Dell > QSFP-DD (400G) >

Alternative Views:

Our Price: $6,595.00

Warranty: 1 Year Warranty

Product Code: QSFPDD-ER8-400G-DE-CO

Compatibility:		Please input the model of the switch or router on which you will install this transceiver
Labeling Options:		Compufox Logo Generic Label - No Logo (3 to 4 days to ship) Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:

Description

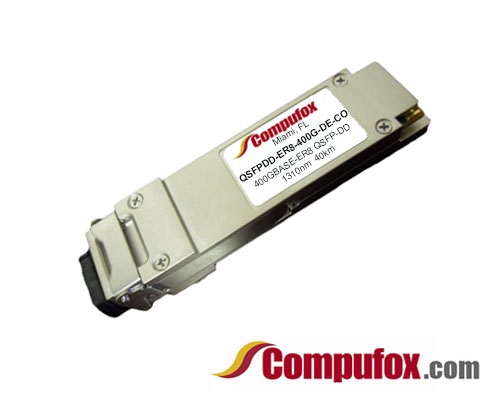

Dell QSFPDD-ER8-400G Compatible 400GBASE-ER8 QSFP-DD PAM4 Optical Transceiver Module (SMF, 1310nm, 40km, LC, DOM).

Specifications:

Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	1310nm	Max. Cable Distance	40km
Connector	Duplex LC/UPC	Media	SMF
Transmitter Type	LWDM EML	Receiver Type	APD
TX Power	-0.6~5.6dBm	Minimum Receiver Power	-16.1dBm (SECQ -17.5dBm)
Power Budget	15.5dB	Receiver Overload	-3.4dB
Max. Power Consumption	14W	Extinction Ratio	6dB
DDM/DOM	Supported	Commercial Temperature Range	0 to 70°C (32 to 158°F)
Modulation (Electrical)	8x50G-PAM4	Modulation (Optical)	8x50G-PAM4
DSP	TX and RX	Host FEC	Supported
Protocols	QSFP-DD MSA Compliant
