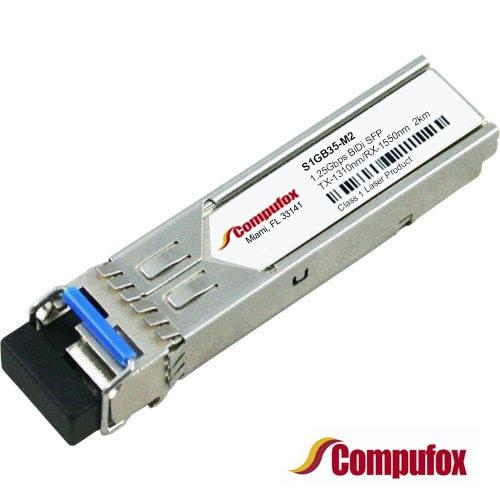

S1GB35-M2 | 1G BiDi SFP Optical Transceiver
S1GB35-M2 | 1G BiDi SFP Optical Transceiver

Our Price: $50.00

Warranty: 1 Year Warranty


Product Code: S1GB35-M2

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Operating Temperature: 		Commercial (COM): 0 to 70 °C (32 to 158 °F) ( Default)
Extended (EXT): -5 to 85 °C (23 to 185 °F) [Add $5.00]
Industrial(IND): -40 to 85°C (-40 to 185°F) [Add $10.00]

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

1.25Gbps BiDi SFP Optical Transceiver Module (MMF, 1310nm-TX/1550nm-RX, 2km, LC, DOM).

Features

  • 1-Fiber Bi-Directional SFP Optical Transceiver
  • 1310 nm LD Transmitter
  • 1550 nm Receiver
  • Distance Up to 2km
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • RoHS Compliant
  • Class 1 Laser International Safety Standard IEC-60825 Compliant


Specifications

  • Device Type: GE BiDi SFP
  • Package: SFP
  • Data Rate: 1.25/1.0625Gbps
  • Wavelength: Tx1310nm/ Rx1550nm
  • Distance/Power Budget: 2km
  • Optical Components
    • LD: FP
    • PD: PIN
  • Output Power: -10~-4dBm
  • Receiver Sensitivity: -17dBm
  • Power Supply Voltage: 3.3V
  • Connector: Single LC/SC
  • Fiber Type: MMF
  • Operating Temperature: 0~70/ -10~80/ -40~85 °C
  • DDMI: With/ Without
  • Application: GBE /FC /FTTx
