Cisco SFP-10/25G-CSR-S 10/25GBASE-CSR SFP28 Module for MMF
Genuine Cisco SFP-10/25G-CSR-S

Our Price: $300.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: SFP-10-25G-CSR-S
Qty:

Description

The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.

Features and benefits of Cisco 25G Modules
  • Interoperable with other IEEE-compliant 25G interfaces where applicable
  • Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability
  • High-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc

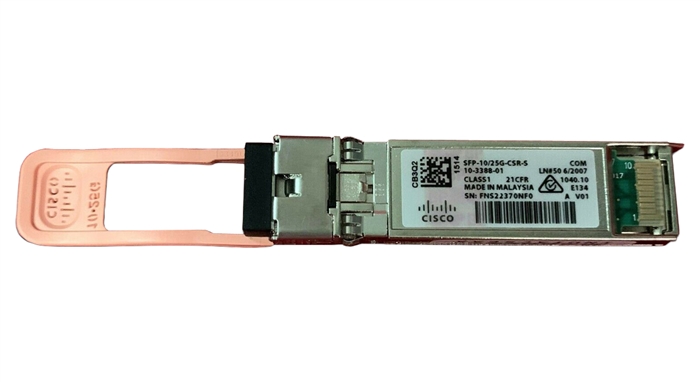

Cisco SFP-10/25G-CSR-S

The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G*. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G.

This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G*. For 10G operation FEC is not required.

Specifications
  • Product Number: SFP-10/25G-CSR-S
  • Description: Cisco 10/25GBASE-CSR SFP28 Module for MMF
  • Connectors: Dual LC/PC connector
  • Cable Type: MMF
  • Wavelength: 850nm
  • Cable Distance:
    • 70m (25G), 82m (10G) @ OM2
    • 300m @ OM3
    • 400m @ OM4
    • 400m @ OM5
  • Transmit Power (dBm):
    • 10G: -7.3 to +2.4
    • 25G: -6 to +2.4
  • Receive Power (dBm):
    • 10G: -9.9to +2.4
    • 25G: -8.7 to +2.4
  • Transmit and Receive Wavelength (nm): 840 to 860
  • Operating temperature range: Commercial temperature range: 0 to 70°C (32 to 158°F)
  • Storage temperature range: -40 to 85°C (-40 to 185°F)
  • Pull Tab Color: Peach
  • Max Power Consumption: 1.2W

Platform support
Cisco SFP-10/25G-CSR-S is supported on a wide range of Cisco equipment.
  • Cisco N9K-C92348GC-X
  • Cisco N540X-ACC-SYS
  • Cisco NCS-5501-SE
  • Cisco N9K-C93180YC-FX
  • Cisco C9500-48Y4C
  • Cisco N9K-C92160YC-X
  • Cisco N9K-X97160YC-EX
  • Cisco N540-ACC-SYS
  • Cisco NCS-5501
  • Cisco N9K-C93180YC-EX
  • Cisco C9500-24Y4C
  • Cisco N9K-X96136YC-R
