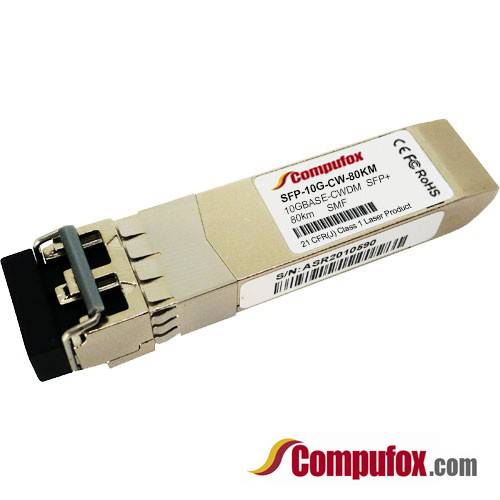

SFP-10G-CWDM-80KM | 10G CWDM SFP+ Optical Transceiver
SFP-10G-CWDM-80KM | 10G CWDM SFP+ Optical Transceiver



Our Price: $295.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-CWDM-80KM


CWDM Wavelength*:
Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Operating Temperature: 		Commercial (COM): 0 to 70 °C (32 to 158 °F) ( Default)
Extended (EXT): -5 to 85 °C (23 to 185 °F) [Add $5.00]
Industrial(IND): -40 to 85°C (-40 to 185°F) [Add $10.00]

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

10GBASE-CWDM SFP+ Optical Transceiver Module (SMF, 80km, LC, DOM).

Features
  • Operating data rate up to 10.3Gbps
  • 1550nm cooled EML Transmitter
  • High sensitivity APD Receiver
  • Distance up to 80km over SMF
  • Single 3. 3V Power supply and TTL Logic Interface
  • Duplex LC Connector Interface, Hot Pluggable
  • Compliant with SFP+ MSA Specification SFF-8431
  • Compliant with SFF-8472
  • Operating Case Temperature Standard: 0 to 70°C

Applications

  • 10GBASE-ZR at 10.31Gbps
  • 10GBASE-ZW at 9.95Gbps
  • 1000 Base-LX Ethernet
  • 8x FC at 8.5Gbps
  • 4x FC at 4.25Gpbs
  • 2x FC at 2.125Gpbs
  • 1x FC at 1.0625Gbps

Specifications

  • Part Number: SFP-10G-CWDM-80KM
  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10.5 Gb/s
  • Distance (max): 80KM
  • Transmitter: Cooled EML
  • Receiver: APD
  • Digital Diagnostic: Yes
  • Connector: Duplex LC
  • Cable Type: SMF
  • Wavelength: 1470nm~1610nm
  • Operating Temperature: 0 to 70°C (32 to 158°F)
