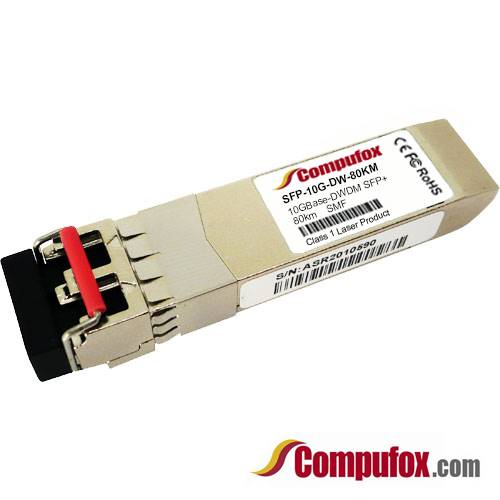

SFP-10G-DWDM-80KM | 10G DWDM SFP+ Optical Transceiver
SFP-10G-DWDM-80KM | 10G DWDM SFP+ Optical Transceiver



Our Price: $265.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-DWDM-80KM


DWDM Wavelength*:
Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Operating Temperature: 		Commercial (COM): 0 to 70 °C (32 to 158 °F) ( Default)
Extended (EXT): -5 to 85 °C (23 to 185 °F) [Add $5.00]
Industrial(IND): -40 to 85°C (-40 to 185°F) [Add $10.00]

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

10GBASE-DWDM SFP+ Optical Transceiver Module (SMF, 80km, LC, DOM)

Features
  • Product Type: Transceiver Module
  • Form Factor: SFP+
  • Data Rate (max): 10.5 Gb/s
  • Distance (max): 80KM
  • Transmitter: EML
  • Receiver: APD
  • Digital Diagnostic: Yes
  • Connector: Duplex LC
  • Cable Type: SMF
  • Wavelength: DWDM C-band
  • Operating Temperature: 0 to 70°C (32 to 158°F)

Form Factor

SFP+

Max Data Rate

10Gbps

Wavelength

1563.86nm to 1528.77nm

Max Cable Distance

80km

Connector

Duplex LC

Optical Components

EML DWDM

Media

SMF

DOM Support

Yes

TX Power

1-5dBm

Receiver Sensitivity

<-23dBm

Power budget

23dB

Receiver Overload

-7dBm

Power Consumption

<1.6W

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Bit Error Ratio (BER)

1E-12

Extinction Ratio

>8.2dB

EMC (Electro Magnetic Compatibility)

Supported

MTBF

1,000,000 Hours

Protocols

SFP+ MSA Compliant, CPRI, eCPRI

Warranty

1 Year

Note: When the long reach transceiver is used in short distances, please use the appropriate attenuator according to the table.
