SFP-10G-DWDM-TUN | 10G DWDM SFP+ Optical Transceiver
SFP-10G-DWDM-TUN | 10G DWDM SFP+ Optical Transceiver

Our Price: $995.00

Warranty: 1 Year Warranty


Product Code: SFP-10G-DWDM-TUN

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Operating Temperature: 		Commercial (COM): 0 to 70 °C (32 to 158 °F) ( Default)
Extended (EXT): -5 to 85 °C (23 to 185 °F) [Add $5.00]
Industrial(IND): -40 to 85°C (-40 to 185°F) [Add $10.00]

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

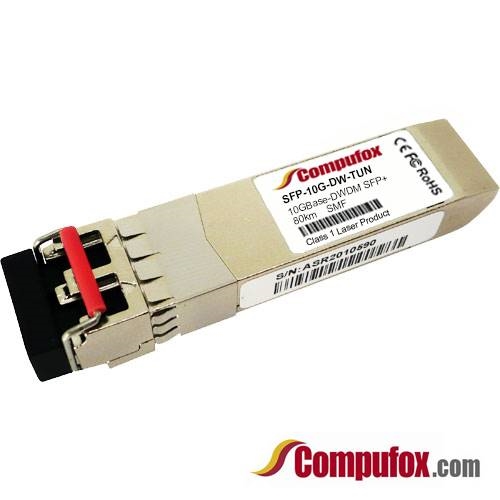

Compufox 10GBASE-DWDM C-band Tunable SFP+ 50GHz Optical Transceiver Module (SMF, 1563.86nm-1528.77nm, 80km, LC, DOM)


Features

Specification Details
Form Factor SFP+
Max Data Rate 10.3125Gbps
Channels C17-C61
Max Cable Distance 80km
Connector Duplex LC
Optical Components EML DWDM
Media SMF
DOM Support Yes
TX Power -1~3dBm
Receiver Sensitivity <-22dBm
Temp Range 0 to 70°C (32 to 158°F)
Protocols SFP+ MSA, CPRI, eCPRI

Note: When the long reach transceiver is used in short distances, please use the appropriate attenuator according to the table.



Swipe left/right to view Grid →
Channel Frequency (THz) Wavelength (nm)
C17191.701563.86
C18191.801563.05
C19191.901562.23
C20192.001561.42
C21192.101560.61
C22192.201559.79
C23192.301558.98
C24192.401558.17
C25192.501557.36
C26192.601556.55
C27192.701555.75
C28192.801554.94
C29192.901554.13
C30193.001553.33
C31193.101552.52
C32193.201551.72
C33193.301550.92
C34193.401550.12
C35193.501549.32
C36193.601548.51
C37193.701547.72
C38193.801546.92
C39193.901546.12
C40194.001545.32
C41194.101544.53
C42194.201543.73
C43194.301542.94
C44194.401542.14
C45194.501541.35
C46194.601540.56
C47194.701539.77
C48194.801538.98
C49194.901538.19
C50195.001537.40
C51195.101536.61
C52195.201535.82
C53195.301535.04
C54195.401534.25
C55195.501533.47
C56195.601532.68
C57195.701531.90
C58195.801531.12
C59195.901530.33
C60196.001529.55
C61196.101528.77
