Cisco SFP-10G-LR-X multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range
Genuine Cisco SFP-10G-LR-X

Our Price: $220.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: SFP-10G-LR-X
Qty:

Description

A broad range of industry-compliant SFP+ modules for 10 Gigabit Ethernet deployments in diverse networking environments.

The Cisco 10GBASE SFP+ modules give you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features and benefits
Cisco SFP+ modules offer the following features and benefits.
  • Industry’s smallest 10G form factor for greatest density per chassis
  • Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
  • Supports “pay-as-you-populate” model for investment protection and ease of technology migration
  • Digital optical monitoring capability for strong diagnostic capabilities
  • Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
  • Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

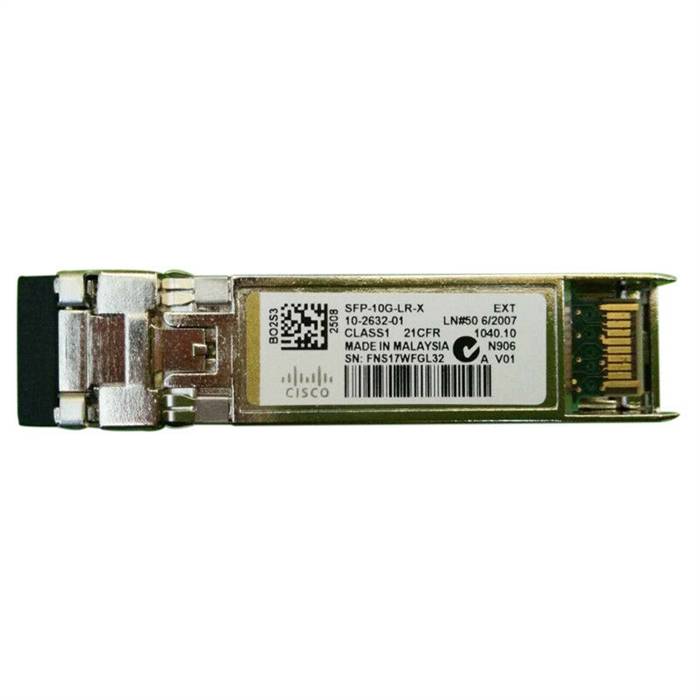

Cisco SFP-10G-LR-X module
The Cisco SFP-10G-LR-X is a multirate 10GBASE-LR, 10GBASE-LW, and OTU2/OTU2e module for extended operating temperature range. It supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF, G.652).

Platform support

    • 7600 Series Router
    • ASR 901
    • ASR 903
    • ASR 1000 Series Router
    • ASR 9000 Series Router
    • ASR 9000v Series Router
    • Catalyst 2350 and 2360 Series Switches
    • Catalyst 2960-S, 2960-X, and 2960-XR Series Switches
    • Catalyst 3100 Blade Switches
    • Catalyst 3560, 3560-E, and 3560-X Series Switches
    • Catalyst 3750, 3750-E, and 3750-X Series Switches
    • Catalyst 3850 Series Switches
    • Catalyst 4500 and 4500-X Series Switches
    • CRS Router
    • MDS 9000
    • ME 4500
    • ME 4900NCS 6000 Series Router
    • Nexus 2000, 3000, and 4000 Series Switches
    • Nexus 9000 and 9500 (modular) Series Switches
    • RF Gateway Series
    • SCE 8000
    • Shared Port Adapter (SPA)
    • Unified Computing System (UCS) Switches


    Product specifications

    • Product Number: SFP-10G-LR-X
    • Description: Cisco multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range
    • Connectors: Dual LC/PC connector
    • Wavelength: 1310nm
    • Cable Type: SMF
    • Cable Distance: 10km
    • Transmit Power (dBm):
      • Maximum: 0.5
      • Minimum: -8.2
    • Receive Power (dBm):
      • Maximum: 0.5
      • Minimum: -14.4
    • Transmit and Receive Wavelength: 1260 to 1355nm
    • Bail Latch Color: Blue
    • Power Consumption: 1W
    • Operating Temperature Range: Extended temperature range (EXT): -5 to 85°C (23 to 185°F)
