Cisco SFP-10G-SR-S 10GBASE-SR SFP+ Module for MMF S-Class

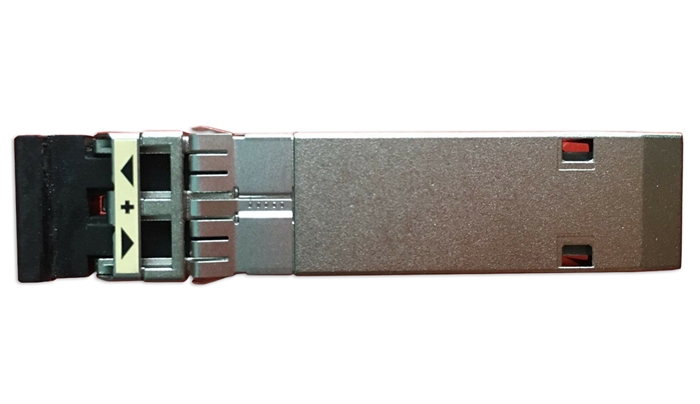

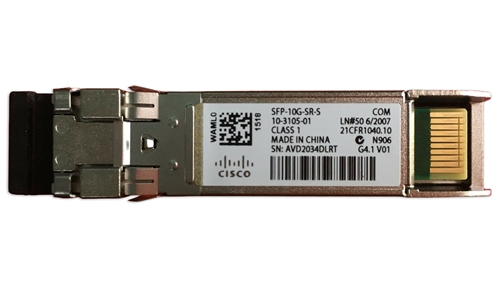

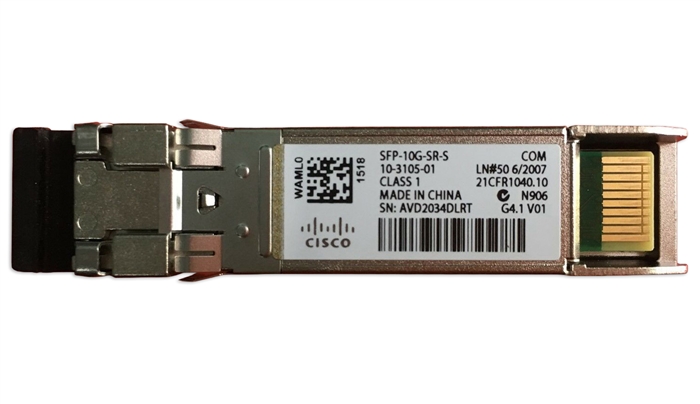

Genuine Cisco SFP-10G-SR-S

Alternative Views:
Our Price: $140.00
Warranty: 1 Year Warranty
Availability: Call


Product Code: SFP-10G-SR-S
Qty:

Description

A broad range of industry-compliant SFP+ modules for 10 Gigabit Ethernet deployments in diverse networking environments.

The Cisco 10GBASE SFP+ modules give you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.

Features and benefits
Cisco SFP+ modules offer the following features and benefits.
  • Industry’s smallest 10G form factor for greatest density per chassis
  • Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
  • Supports “pay-as-you-populate” model for investment protection and ease of technology migration
  • Digital optical monitoring capability for strong diagnostic capabilities
  • Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
  • Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco

Cisco SFP-10G-SR-S module (S-Class)
The Cisco 10GBASE-SR module supports a link length of 26 meters on standard Fiber Distributed Data Interface (FDDI)-grade Multimode Fiber (MMF). Using 2000 MHz*km MMF (OM3), up to 300-meter link lengths are possible. Using 4700 MHz*km MMF (OM4), up to 400 meter link lengths are possible. SFP-10G-SR-S does not support FCoE.

Platform support

    • 7600 Series Router
    • ASR 901
    • ASR 903
    • ASR 1000 Series Router
    • ASR 9000 Series Router
    • ASR 9000v Series Router
    • Catalyst 2350 and 2360 Series Switches
    • Catalyst 2960-S, 2960-X, and 2960-XR Series Switches
    • Catalyst 3100 Blade Switches
    • Catalyst 3560, 3560-E, and 3560-X Series Switches
    • Catalyst 3750, 3750-E, and 3750-X Series Switches
    • Catalyst 3850 Series Switches
    • Catalyst 4500 and 4500-X Series Switches
    • CRS Router
    • MDS 9000
    • ME 4500
    • ME 4900NCS 6000 Series Router
    • Nexus 2000, 3000, and 4000 Series Switches
    • Nexus 9000 and 9500 (modular) Series Switches
    • RF Gateway Series
    • SCE 8000
    • Shared Port Adapter (SPA)
    • Unified Computing System (UCS) Switches


    Product specifications

    • Product Number: SFP-10G-SR-S
    • Description: Cisco 10GBASE-SR SFP+ Module for MMF S-Class
    • Connectors: Dual LC/PC connector
    • Wavelength: 850nm
    • Cable Type: MMF
    • Cable Distance:
      • 33m @ OM1
      • 82m @ OM2
      • 300m @ OM3
      • 400m @ OM4
      • 400m @ OM5
    • Transmit Power (dBm):
      • Maximum: -1.2
      • Minimum: -7.3
    • Receive Power (dBm):
      • Maximum: -1.0
      • Minimum: -9.9
    • Transmit and Receive Wavelength: 840 to 860nm
    • Bail Latch Color: Beige
    • Power Consumption: 1W
    • Operating Temperature Range: Commercial temperature range (COM): 0 to 70°C (32 to 158°F)
