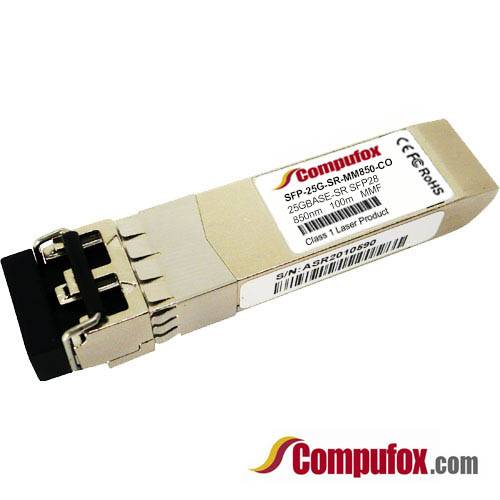

SFP-25G-SR-MM850-CO | H3C Compatible 25G SFP28 Transceiver
SFP-25G-SR-MM850-CO | H3C Compatible 25G SFP28 Transceiver

Our Price: $65.00

Warranty: 1 Year Warranty


Product Code: SFP-25G-SR-MM850-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

H3C SFP-25G-SR-MM850 Compatible 25GBASE-SR SFP28 Optical Transceiver Module (MMF, 850nm, 100m, LC, DOM).

Specifications:
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 850nm Max Cable Distance 100m@OM4/70m@OM3
Connector Duplex LC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -7.9–1.9dBm Minimum Receiver Power <-6dBm
Power Budget 1.9dB Receiver Overload 2.4dBm
Power Consumption ≤1W Extinction Ratio > 2dB
CDR (Clock and Data Recovery) TX & RX Built-in CDR Inbuilt FEC Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432
DDM/DOM Supported Core Size 50/125 µm
Packaging Technology COB Packaging
