SFP-25G-SR-S-CO | Cisco Compatible 25G SFP28 Transceiver
SFP-25G-SR-S-CO | Cisco Compatible 25G SFP28 Transceiver

Our Price: $65.00

Warranty: 1 Year Warranty


Product Code: SFP-25G-SR-S-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

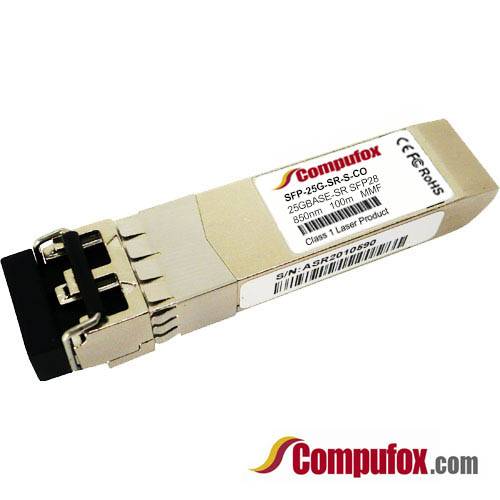

Cisco SFP-25G-SR-S Compatible 25GBASE-SR SFP28 Optical Transceiver Module (MMF, 850nm, 100m, LC, DOM).

Specifications:
Form Factor SFP28 Max Data Rate 25.78Gbps
Wavelength 850nm Max Cable Distance 100m@OM4/70m@OM3
Connector Duplex LC Media MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -7.9–1.9dBm Minimum Receiver Power <-6dBm
Power Budget 1.9dB Receiver Overload 2.4dBm
Power Consumption ≤1W Extinction Ratio > 2dB
CDR (Clock and Data Recovery) TX & RX Built-in CDR Inbuilt FEC Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432
DDM/DOM Supported Core Size 50/125 µm
Packaging Technology COB Packaging

Compatible Switches and Routers:
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco Catalyst 9200 Series (C9200-NM-2Y)
  • Cisco Catalyst 9200L Series (C9200L-24PXG-2Y)
  • Cisco Catalyst 9200L Series (C9200L-48PXG-2Y)
  • Cisco Catalyst 9300 Series (C9300-NM-2Y)
  • Cisco Catalyst 9300X Series (C9300X-12Y)
  • Cisco Catalyst 9300X Series (C9300X-24Y)
  • Cisco Catalyst 9300X Series (C9300X-NM-8Y)
  • Cisco Catalyst 9400 Series (C9400-SUP-1XL-Y)
  • Cisco Catalyst 9500 Series (C9500-24Y4C)
  • Cisco Catalyst 9500 Series (C9500-48Y4C)
  • Cisco Catalyst 9600 Series (C9600-LC-48YL)
  • Cisco Nexus 3000 Series (N3K-C36180YC-R)
  • Cisco Nexus 3000 Series (N3K-C34180YC)
  • Cisco Nexus 3000 Series (N3K-C34200YC-SM)
  • Cisco Nexus 9200 Series (N9K-C92348GC-X)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX)
  • Cisco Nexus 9300 Series (N9K-C9348GC-FXP)
  • Cisco Nexus 9300 Series (N9K-C93240YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93360YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3S)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9500 Series (N9K-X97160YC-EX)
  • Cisco Nexus 9500 Series (N9K-X96136YC-R)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HX-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-H-S)
  • Cisco NCS 5500 Series (NCS-55A1-48Q6H)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC55-32T16Q4H-A)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco UCSB (UCS-FI-6454)
  • Cisco UCSB (UCS-IOM-2408)
  • Cisco UCSB (UCS-FI-64108)
  • Cisco UCSB (UCS-FI-64108-U)
  • Cisco UCSB (UCS-FI-6454-U)
  • Cisco UCSC (UCSC-PCIE-QD25GF)
  • Cisco UCSC (UCSC-PCIE-ID25GF)
  • Cisco UCSC (UCSC-P-M4D25GF)
  • Cisco UCSC (UCSC-P-M5D25GF)
  • Cisco UCSC (UCSC-PCIE-C25Q-04)
  • Cisco UCSC (UCSC-MLOM-C25Q-04)
  • Cisco UCSC (UCSC-M-V25-04)
  • Cisco UCSX (UCS-9108-25G-IFM)
