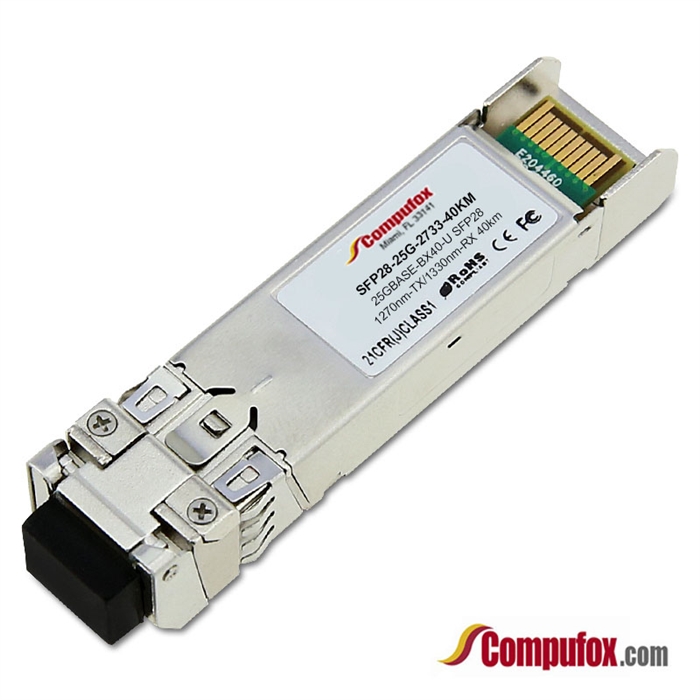

SFP28-25G-2733-40KM  | 25G BIDI SFP28 Optical Transceiver
SFP28-25G-2733-40KM | 25GBASE-BX40-U BiDi SFP28 40km | Compufox

Our Price: $145.00

Warranty: 1 Year Warranty


Product Code: SFP28-25G-2733-40KM

Equipment where Transceiver will be Installed

Select Brand:

Compatibility:

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

25GBASE-BX20-U SFP28 Optical Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 40km, LC, DOM).

Compufox SFP28-25G-2733-40KM is a professional-grade Upstream Bi-Directional (BiDi) module designed for 25 Gigabit Ethernet and 5G optical fronthaul (eCPRI). By utilizing an advanced APD receiver, this module provides the high sensitivity required to maintain a stable 25.78Gbps link over a single strand of fiber at distances up to 40km.

Important Installation Note: This is an Upstream (BX40-U) module. To establish a link, it must be used in a pair with the matching 25GBASE-BX40-D (1330nm-TX/1270nm-RX) Downstream transceiver.

Technical Note on Distance: To achieve the maximum 40km reach , Host FEC (Forward Error Correction) must be enabled on the networking equipment. Without FEC, the reliable transmission distance is approximately 30km.


Technical Specifications

Form Factor
SFP28
Max Data Rate
25.78Gbps
Wavelength
1270nm-TX / 1330nm-RX
Max Cable Distance
40km
Connector
Simplex LC
Media
Single-mode Fiber (SMF)
Transmitter Type
DFB BiDi
Receiver Type
APD
TX Power
0 ~ 6dBm
Receiver Sensitivity
< -18dBm
Power Budget
18dB
Receiver Overload
2dBm
Power Consumption
≤ 1.2W
Extinction Ratio
3.5dB
CDR Support
TX and RX Built-in
FEC Function
Supported @ 40km, Not Supported @ 30km
Temp. Range
0 to 70°C (32 to 158°F)
Protocols
MSA Compliant, CPRI, eCPRI, SFF-8472
DDM/DOM
Supported
Warranty
1 Year
Features
  • Compatible Switches and Routers:
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A9K-4HG-FLEX-SE)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-TR)
  • Cisco ASR 9000 Series (A99-4HG-FLEX-SE)
  • Cisco Catalyst 9200 Series (C9200-NM-2Y)
  • Cisco Catalyst 9200L Series (C9200L-24PXG-2Y)
  • Cisco Catalyst 9200L Series (C9200L-48PXG-2Y)
  • Cisco Catalyst 9300 Series (C9300-NM-2Y)
  • Cisco Catalyst 9300X Series (C9300X-12Y)
  • Cisco Catalyst 9300X Series (C9300X-24Y)
  • Cisco Catalyst 9300X Series (C9300X-NM-8Y)
  • Cisco Catalyst 9400 Series (C9400-SUP-1XL-Y)
  • Cisco Catalyst 9500 Series (C9500-24Y4C)
  • Cisco Catalyst 9500 Series (C9500-48Y4C)
  • Cisco Catalyst 9600 Series (C9600-LC-48YL)
  • Cisco Nexus 3000 Series (N3K-C36180YC-R)
  • Cisco Nexus 3000 Series (N3K-C34180YC)
  • Cisco Nexus 3000 Series (N3K-C34200YC-SM)
  • Cisco Nexus 9200 Series (N9K-C92348GC-X)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX)
  • Cisco Nexus 9300 Series (N9K-C9348GC-FXP)
  • Cisco Nexus 9300 Series (N9K-C93240YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93360YC-FX2)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3S)
  • Cisco Nexus 9300 Series (N9K-C93180YC-FX3)
  • Cisco Nexus 9500 Series (N9K-X97160YC-EX)
  • Cisco Nexus 9500 Series (N9K-X96136YC-R)
  • Cisco NCS 540 Series (N540-24Z8Q2C-SYS)
  • Cisco NCS 540 Series (N540-ACC-SYS)
  • Cisco NCS 540 Series (N540X-ACC-SYS)
  • Cisco NCS 540 Series (N540-24Z8Q2C-M)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-A)
  • Cisco NCS 540 Series (N540X-16Z4G8Q2C-D)
  • Cisco NCS 540 Series (N540-FH-CSR-SYS)
  • Cisco NCS 540 Series (N540-24Q8L2DD-SYS)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HD-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-HX-S)
  • Cisco NCS 5500 Series (NCS-55A2-MOD-SE-H-S)
  • Cisco NCS 5500 Series (NCS-55A1-48Q6H)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-S)
  • Cisco NCS 5500 Series (NCS-55A1-24Q6H-SS)
  • Cisco NCS 5500 Series (NC55-32T16Q4H-A)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-S)
  • Cisco NCS 5500 Series (NCS-57C3-MOD-SE-S)
  • Cisco UCSB (UCS-FI-6454)
  • Cisco UCSB (UCS-IOM-2408)
  • Cisco UCSB (UCS-FI-64108)
  • Cisco UCSB (UCS-FI-64108-U)
  • Cisco UCSB (UCS-FI-6454-U)
  • Cisco UCSC (UCSC-PCIE-QD25GF)
  • Cisco UCSC (UCSC-PCIE-ID25GF)
  • Cisco UCSC (UCSC-P-M4D25GF)
  • Cisco UCSC (UCSC-P-M5D25GF)
  • Cisco UCSC (UCSC-PCIE-C25Q-04)
  • Cisco UCSC (UCSC-MLOM-C25Q-04)
  • Cisco UCSC (UCSC-M-V25-04)
  • Cisco UCSX (UCS-9108-25G-IFM)
  • Mellanox MCX4121A-ACAT
  • Mellanox MCX512A-ACAT
  • Qlogic (Qlogic QLE41212HLCU)
