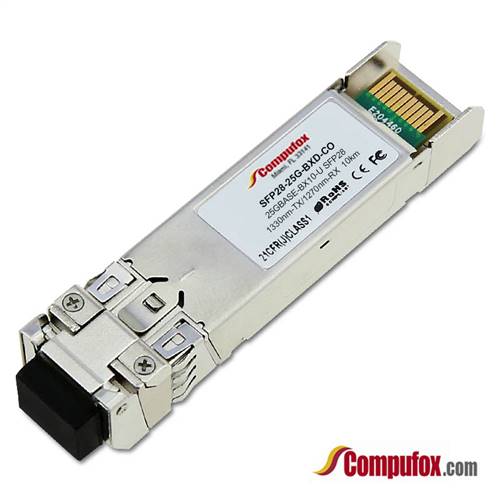

SFP28-25G-BXD-CO | Mellanox Compatible 25G BIDI SFP28 Transceiver
SFP28-25G-BXD-CO | Mellanox Compatible 25G SFP28 Transceiver

Our Price: $125.00

Warranty: 1 Year Warranty


Product Code: SFP28-25G-BXD-CO


Compatibility: 		Please input the model of the switch or router on which you will install this transceiver

Labeling Options: 		Compufox Logo
Generic Label - No Logo (3 to 4 days to ship)
Your Logo - Min Qty: 20 (3 to 4 days to ship) [Add $3.00]

Qty:
Description

Mellanox SFP28-25G-BXD Compatible, 25GBASE-BX10-D SFP28 Optical Transceiver Module for Data Center and Telecom (SMF, 1330nm-TX/1270nm-RX, 10km, LC, DOM).

Compufox SFP28-25G-BXD is a Bi-Directional (BiDi) SFP28 optical module designed for 25 Gigabit Ethernet and 5G wireless infrastructure. By using Wavelength Division Multiplexing (WDM), this transceiver sends and receives data over a single strand of single-mode fiber, allowing you to maximize your existing fiber plant and reduce cabling costs.


Important Installation Note: This is a Downstream (BX10-D) module. To establish a valid link, it must be used in a pair with the matching SFP28-25G-BXU (1270nm-TX/1330nm-RX) Upstream transceiver.

Key Features:

  • Single-Fiber Efficiency: Doubles your bandwidth capacity on a single fiber strand.
  • Advanced Signal Integrity: Features built-in TX and RX CDR to ensure stable 25.78Gbps performance across the full 10km reach.
  • Broad Interoperability: Custom-coded for 100% compatibility with Cisco, Juniper, Arista, Dell, and other major OEM platforms.

Specifications:
Form Factor SFP28 Max. Data Rate 25.78Gbps
Wavelength 1330nm-TX/1270nm-RX Max. Cable Distance 10km
Connector Simplex LC/UPC Media SMF
Transmitter Type DFB BiDi Receiver Type PIN
TX Power -2~4dBm Minimum Receiver Power <-13dBm
Power Budget 11dB Receiver Overload 2dBm
Max. Power Consumption ≤1 W Extinction Ratio 3.5dB
DDM/DOM Supported Commercial Temperature Range 0 to 70°C (32 to 158°F)
CDR (Clock and Data Recovery) TX & RX Built-in CDR Inbuilt FEC No
Protocols SFP28 MSA, CPRI, eCPRI

Compatible Switches and Routers:
  • Mellanox MCX4121A-ACAT
  • Mellanox MCX512A-ACAT
