USB 3.0 Type-C to RJ45 Gigabit Ethernet Network Adapter with ASIX AX88179

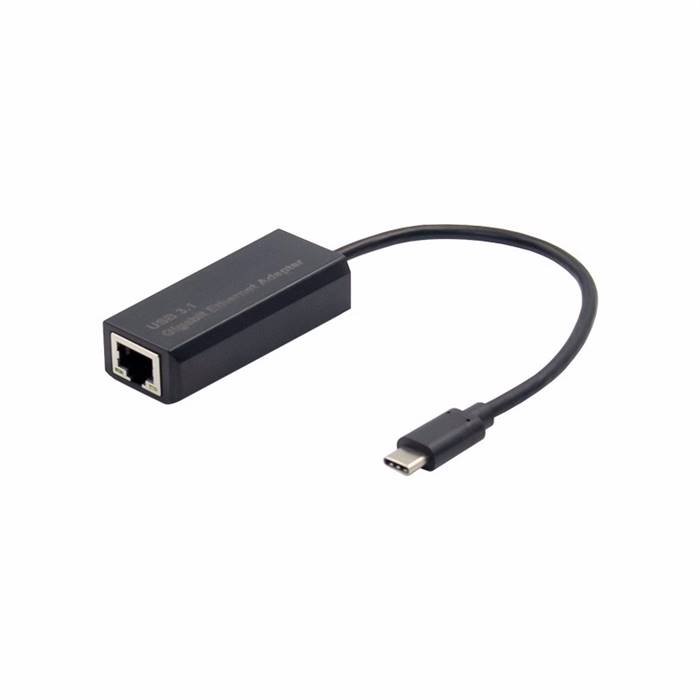

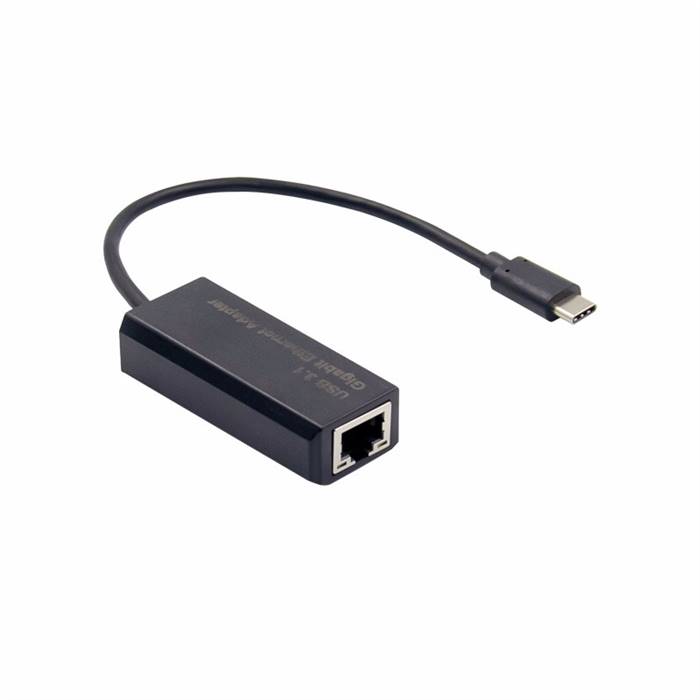

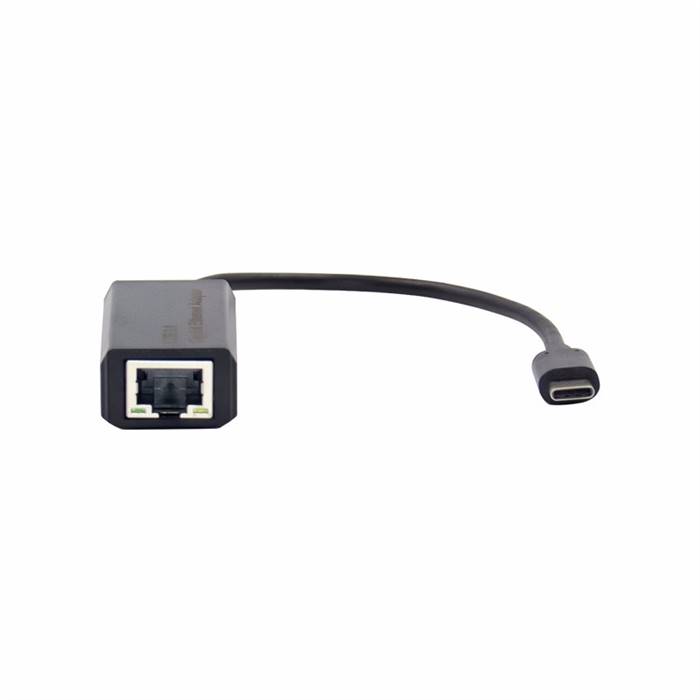

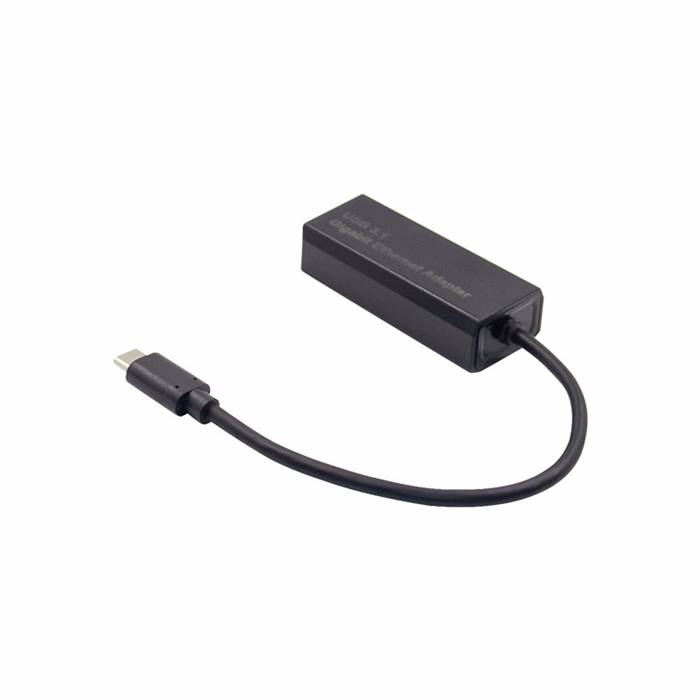

USB 3.0 Type-C to RJ45 Gigabit Ethernet Network Adapter with ASIX AX88179



Alternative Views:
Our Price: $12.00
Warranty: 1 Year Warranty


Product Code: U3C-GE-1T-88179
Qty:

Description


Instantly add a Gigabit Ethernet network connection to your computer with a USB-C to Gigabit Ethernet adapter, using either the USB Type-C™ or Thunderbolt™ 3 port on your computer.

The USB-C to LAN adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.1 Gen 1 (5Gbps). You can access very large files over the network at 10/100/1000Mbps network speeds with checksum offload (IPv4, IPv6, TCP, UDP) and large-send offload support.

Instantly delivers Gigabit speeds using the USB-C or Thunderbolt 3 port on your device without requiring an internal Ethernet card in your device.

This portable USB Gigabit network adapter is the ideal desktop network adapter or laptop accessory for those who require more portability. It’s powered directly from the USB port making it easy to connect when you’re on the go.

Our USB network adapters make it easy to add a wired network connection to your laptop, desktop or tablet. If your device has a USB port available, then our compact USB network adapters can help you connect.

Features

  • Integrates 10/100/1000Mbps Gigabit Ethernet MAC/PHY
  • Supports 10BASE-T ,100BASE-TX ,1000BASE-T with auto-negotiation
  • Fully compliant with IEEE 802.3/802.3u/802.3az-2010 (Energy Efficient Ethernet)
  • Supports full duplex operation with IEEE 802.3x flow control
  • Supports half duplex operation with back pressure flow control
  • Supports IEEE 802.1q VLAN Tagging
  • Supports 4KB jumbo frame
  • Bus-Powered, no need to connect external power source
  • Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
  • LEDs indicating for Speed and Link status
  • Fully Plug and Play, Hot Swap compatible

Specifications

  • Chipset: AX88179
  • Host Type: USB Type-C (24 pin) USB 3.0 (5Gbps)
  • Connector: 1 * RJ45
  • Date Rata: 10/100/1000Mbps
  • Topology
    • 10BASE-T ,100BASE-TX ,1000BASE-T, IEEE 802.1Q VLAN, IEEE 802.3x flow control
    • IEEE 802.3, 802.3u and 802.3ab compatible, IEEE 802.3az (Energy Efficient Ethernet)
  • LED Indicator: Green : Power LED ； Yellow : Link/Act LED
  • Material: Black plastic case
  • System: Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux / DOS

Package Contenst

  • 1 * Type-C to Gigabit Ethernet Adapter AX88179
  • 1 * User Manual
  • 1 * Driver CD
