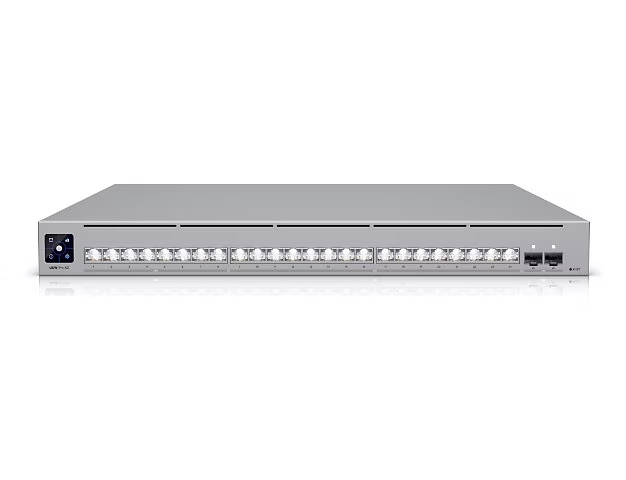

The Ubiquiti UniFi Pro XG 24 PoE (USW-Pro-XG-24-PoE) is a professional-grade, Layer 3 managed switch with 24 multi-gigabit ethernet ports and two 25G SFP28 ports.

Port specifications

• Ethernet ports:
• 16x 10 GbE RJ45 ports (10G/5G/2.5G/1G/100M/10M)
• 8x 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
• All 24 RJ45 ports support PoE+++ (802.3bt Type 4) with up to 90W output per port.
• Fiber ports: 2x 25G SFP28 ports

Performance

• Switching capacity: 460 Gbps
• Non-blocking throughput: 230 Gbps
• Forwarding rate: 342 Mpps
• Total PoE availability: 720W

Management and features

• User interface: A 1.3-inch color touchscreen provides port information, diagnostics, and management capabilities.
• Etherlighting™: RJ45 ports illuminate to indicate port location, speed/link, and native VLAN/network. The colors can be customized by the user.
• Layer 3 features: This switch supports advanced Layer 3 functions, including inter-VLAN routing, static routing, and a DHCP server.
• Power redundancy: A DC power backup port allows for power redundancy with the UniFi SmartPower RPS (USP-RPS).
• Cooling: Five integrated fans manage heat and enable near-silent operation.
• Rack-mountable: Designed for 1U rack installation.
