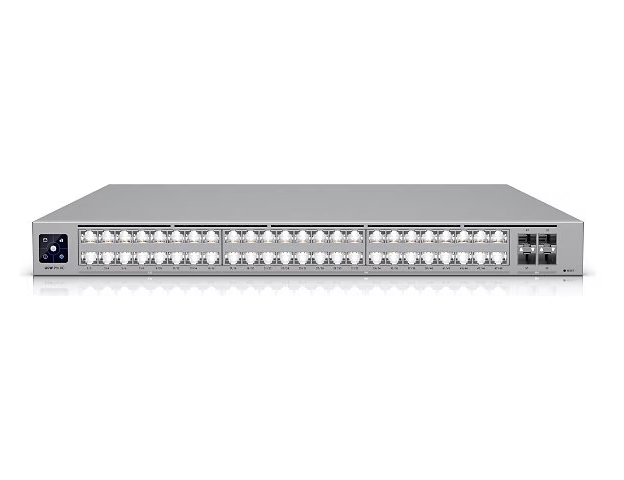

The Ubiquiti UniFi Pro XG 48 PoE switch (USW-PRO-XG-48-POE) is a professional-grade, Layer 3 managed switch designed for high-performance network environments. It features a combination of multi-gigabit Ethernet ports, 25G SFP28 ports, and a high Power over Ethernet (PoE) budget. Port configuration - 48 total ports: A high-density configuration for demanding network environments.
- (32) 10 GbE RJ45 ports: These multi-speed ports support 10G, 5G, 2.5G, 1G, 100M, and 10M speeds, and all offer PoE+++.
- (16) 2.5 GbE RJ45 ports: These multi-speed ports support 2.5G, 1G, 100M, and 10M speeds, and all offer PoE+++.
- (4) 25G SFP28 ports: High-capacity ports for uplinks, which also support 10G and 1G speeds.
Performance and switching - Switching capacity: 920 Gbps.
- Non-blocking throughput: 460 Gbps.
- Forwarding rate: 684 Mpps.
- Layer 3 features: Includes inter-VLAN routing, static routing, and a DHCP server for local networks.
- Other features: Supports LACP port aggregation, STP/RSTP, QoS, advanced IGMP configuration, and Jumbo Frames.
PoE features - PoE support: Every one of the 48 RJ45 ports supports PoE+++, also known as 802.3bt Type 4.
- Maximum PoE wattage per port: Up to 90W.
- Total PoE budget: Up to 1080W (with 200-240V AC input).
- Total PoE availability: 972W (100-120V AC input) and 1080W (200-240V AC input).
Hardware and physical specifications - Display: A 1.3-inch touchscreen for easy status monitoring and configuration.
- Etherlighting™: A feature that illuminates the ports to indicate their location, speed, and native VLAN.
- Power redundancy: Includes a DC input for power backup using the UniFi SmartPower RPS (USP-RPS).
- Form factor: Rack-mountable, 1U height.
- Enclosure material: SGCC steel.
- Dimensions (H x W x D): 44 x 442 x 480 mm (1.7 x 17.4 x 18.9 inches).
- Weight (without brackets): 8.7 kg (15.4 lb).
- Management: Accessible via the UniFi Network application.
|
|
|
 |
|
 |
|
