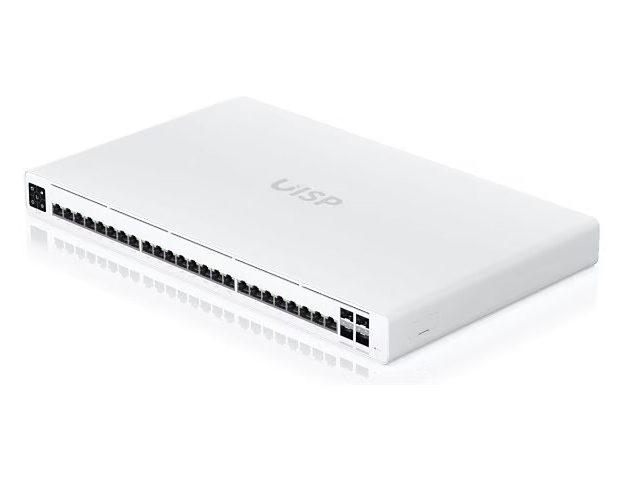

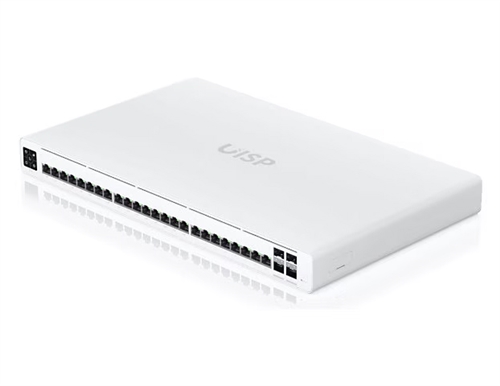

The Ubiquiti UISP-S-PRO is a 24-port gigabit switch featuring 16 ports with 27V passive PoE output and 4x 10G SFP+ uplink ports. It has a 220W total PoE budget, a switching capacity of 128 Gbps, and includes a 1.3-inch color LCM touchscreen for management. The switch also offers an additional Power TransPort input for DC redundancy and supports management via Ethernet and Bluetooth.

Key Specifications

• Ports: 24 x 1 Gbps RJ45 LAN ports (16 with 27V passive PoE) and 4 x 1 Gbps/10 Gbps SFP+ uplink ports.
• PoE: 220W total PoE budget for the 16 passive PoE ports, which can deliver 15W (2-pair) or 30W (4-pair) of power per port.
• Performance: 128 Gbps switching capacity and a 95.23 Mpps forwarding rate.
• Management: Includes a 1.3-inch LCM color touchscreen display, Ethernet in-band management, and support for the UISP Mobile app via Bluetooth.
• Power: Powered by an internal 250W AC/DC power supply and features an additional Power TransPort DC input for power redundancy.
• Features: Supports Layer 2 features like DHCP Snooping and port isolation.
• Design: Rack-mountable with a durable steel and polycarbonate/ABS enclosure.

Physical Characteristics

• Dimensions: 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7 inches).
• Weight: 4 kg (8.8 lb).
• Operating Temperature: -10°C to 50°C (14°F to 122°F).
• Certifications: CE, FCC, and IC compliant.
