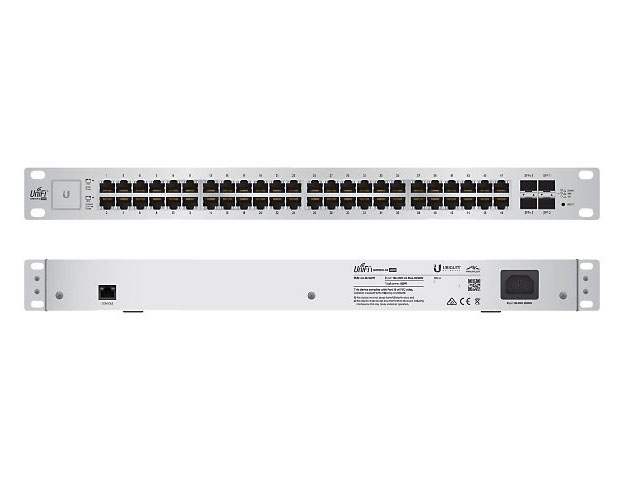

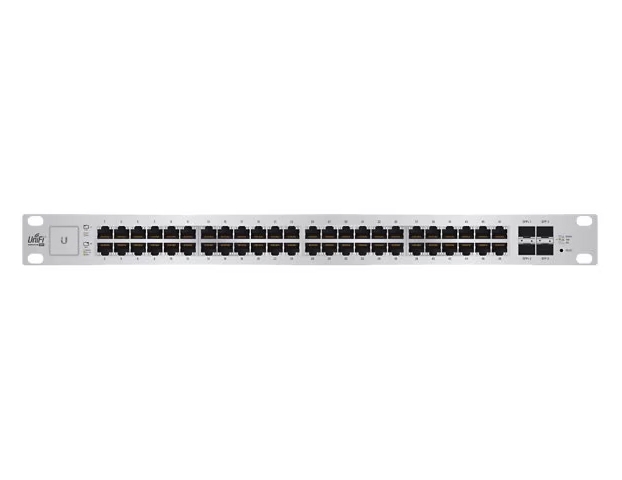

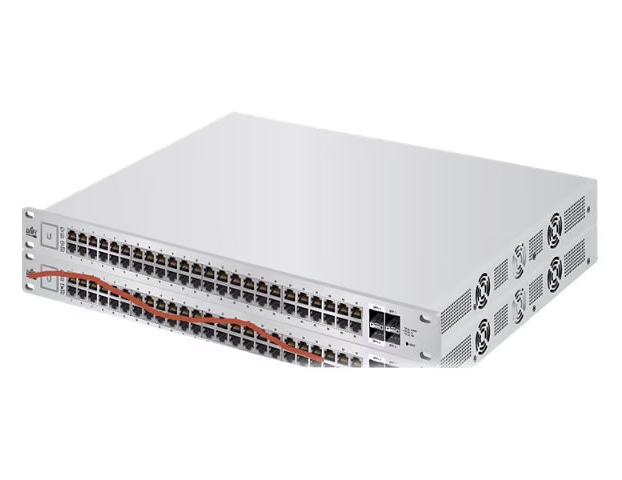

The UniFi US-48-500W is a 48-port managed Gigabit switch with 500W of power, featuring 48 PoE+ ports, two 1 Gigabit SFP ports, and two 10 Gigabit SFP+ ports. It supports both auto-sensing IEEE 802.3af/at PoE and configurable 24V Passive PoE, providing significant power for numerous devices. The switch offers 70 Gbps of non-blocking throughput and 140 Gbps of switching capacity.

Key Specifications

• Ports: 48 x 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, 2 x 1/10 Gbps SFP+ ports, 2 x 1 Gbps SFP ports.
• PoE Support: Supports IEEE 802.3af/at (PoE+) and 24V Passive PoE.
• Total Power Budget: 500W.
• Switching Capacity: 140 Gbps.
• Throughput: 70 Gbps (non-blocking).
• Forwarding Rate: 104.16 Mpps.
• Power Supply: Internal 500W AC/DC power supply with universal input (100-240V AC, 50/60 Hz).
• Management: Managed via the UniFi Controller software.
• Dimensions: 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75 inches).
• Weight: 6.1 kg (13.5 lb).

Key Features

• High Performance:

Designed for large, traffic-intensive networks with a powerful internal power supply.

• Universal PoE:

Can power devices using industry-standard PoE+ (802.3af/at) or 24V Passive PoE.

• High-Speed Uplinks:

Includes SFP+ ports for high-bandwidth connections, such as to other switches or servers.

• UniFi Controller Management:

Provides a centralized, graphical interface for configuration and monitoring of the switch and other UniFi devices.
