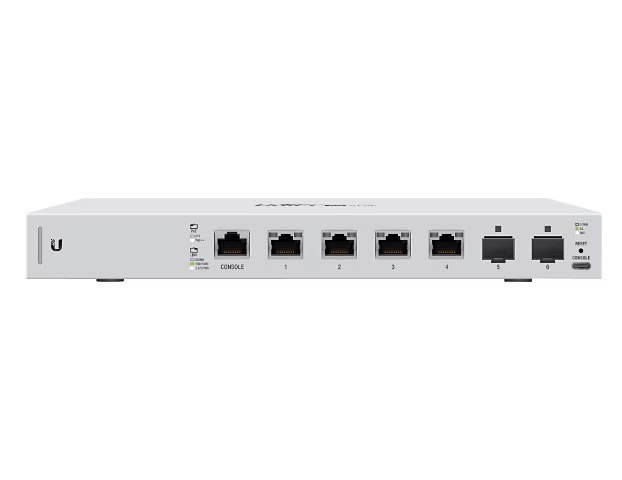

The US-XG-6POE is a Ubiquiti UniFi managed 10 Gbps switch with four 10GbE PoE++ RJ45 ports and two 10 Gbps SFP+ fiber ports, delivering up to 60W of power per port for a total PoE budget of 170W. It offers 60 Gbps non-blocking throughput, 120 Gbps switching capacity, and includes Layer 3 routing features. The device uses an included external 54V DC power adapter and supports out-of-band management via a USB-C port.

Key Specifications

• Networking Ports: 4 x 1/2.5/5/10 GbE RJ45 ports with PoE++
• Fiber Uplink Ports: 2 x 1/10 Gb SFP+ ports
• Management Ports: 1 x RJ45 Serial Console port, 1 x USB Type-C port
• PoE Standard: IEEE 802.3bt (PoE++)
• Max PoE Wattage per Port: 60W
• Total PoE Budget: 170W
• Max Power Consumption: 40W (excluding PoE output)
• Switching Capacity: 120 Gbps
• Non-Blocking Throughput: 60 Gbps
• Forwarding Rate: 89.3 Mpps
