The Ubiquiti UniFi Switch USW-16-POE is a 16-port managed Layer 2 switch featuring 8 Gigabit Ethernet ports with 802.3at PoE+ support and 2 1G SFP ports for fiber uplinks. It offers a total PoE power budget of 42W, a non-blocking throughput of 18 Gbps, and a compact, fanless design suitable for rack-mount installations. The switch is managed through the UniFi Network Controller and mobile app, providing advanced Layer 2 features and port mirroring.

Key Specifications

• Ports: 16x 1 Gbps RJ45 Ethernet ports, including 8 PoE+ enabled ports.
• SFP Ports: 2x 1 Gbps SFP ports for fiber connectivity.
• PoE: Supports 802.3af and 802.3at (PoE+) standards.
• PoE Budget: 42W total power available for connected PoE devices.
• Throughput: 18 Gbps total non-blocking throughput.
• Management: Fully managed Layer 2 switch, configurable via UniFi Network Controller and mobile app.
• Design: Compact, fanless, 1U rack-mountable design with a 1.3" touch LCM display for status information.

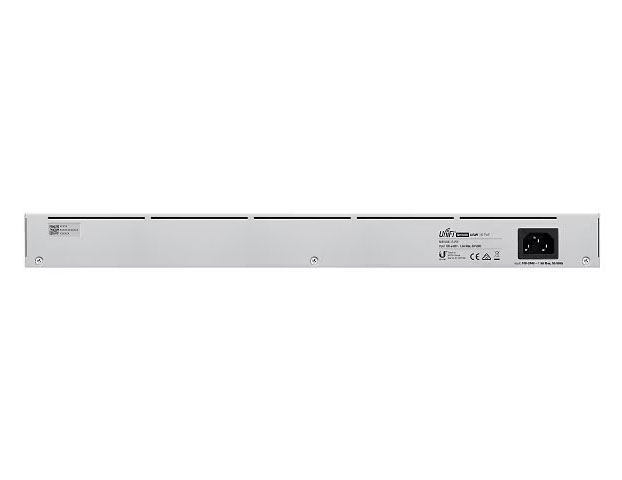

• Power: Internal power supply with a 100-240VAC universal input.
• Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72 inches).
