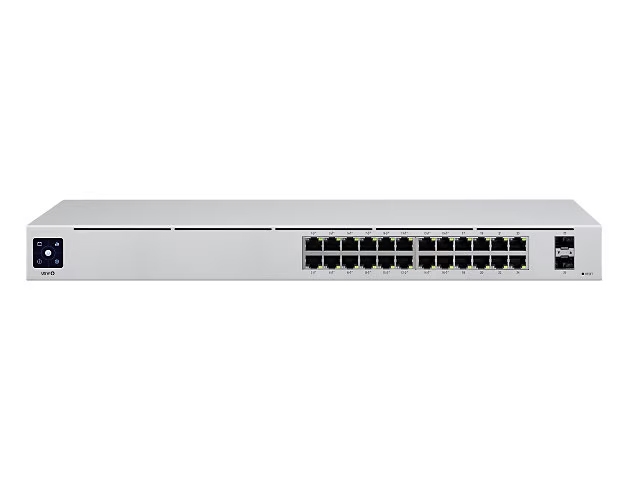

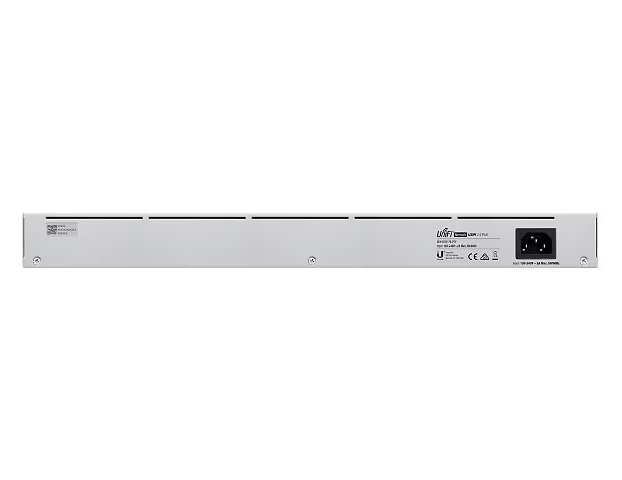

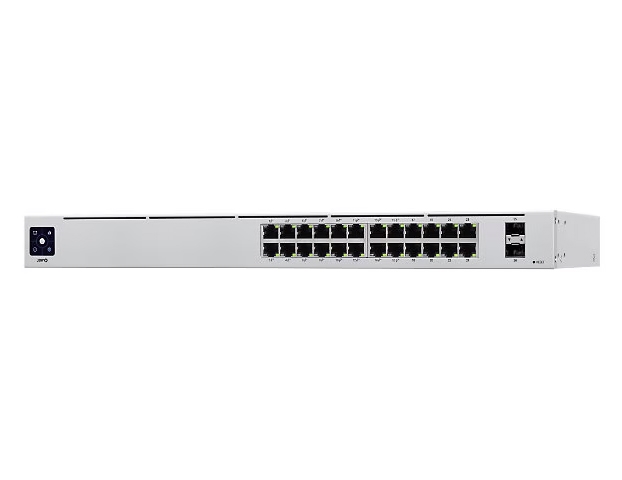

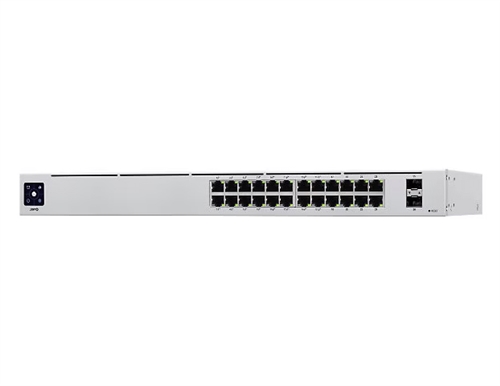

The Ubiquiti UniFi Switch USW-24-POE is a 24-port, managed, rack-mountable Layer 2 switch with 16 PoE+ ports (IEEE 802.3af/at), two 1Gb SFP ports, and 24 Gigabit RJ45 Ethernet ports. It offers 52 Gbps of total switching capacity, a 38.69 Mpps forwarding rate, and a maximum power consumption of 25W (excluding PoE output), with 95W of available PoE power.

General Specifications

• Brand: Ubiquiti
• Model: USW-24-POE
• Product Line: UniFi Switch
• Form Factor: Rack-mountable (1U) and desktop
• Management: Layer 2 managed switch
• Certifications: CE, FCC, IC

Ports & Connectivity

• Total RJ45 Ports: 24
• PoE Ports: 16 ports with 802.3af/at PoE+ support
• SFP Ports: 2 x 1Gb SFP Ethernet ports
• Max PoE Wattage per Port: 32W (802.3at)
• Total Available PoE: 95W

Performance & Throughput

• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Total Non-Blocking Throughput: 26 Gbps

Power & Dimensions

• Max Power Consumption (excluding PoE): 25W
• Power Method: Universal AC Input (100-240VAC)
• Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")
• Weight: 3.09 kg (6.81 lb) with rack mount brackets

Environmental & Other

• Operating Temperature: -5 to 40° C (23 to 104° F)
• Humidity: 10 - 90% (non-condensing)
• Features: Air/Contact ESD/EMP protection
