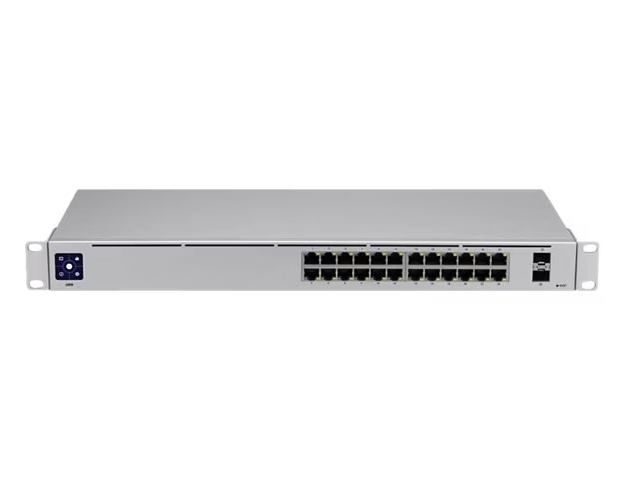

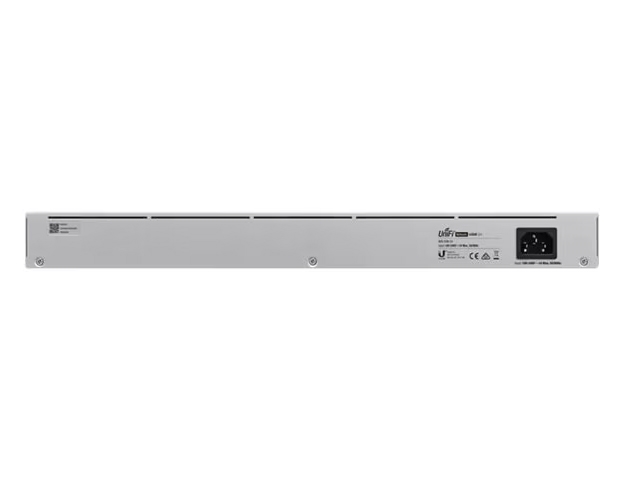

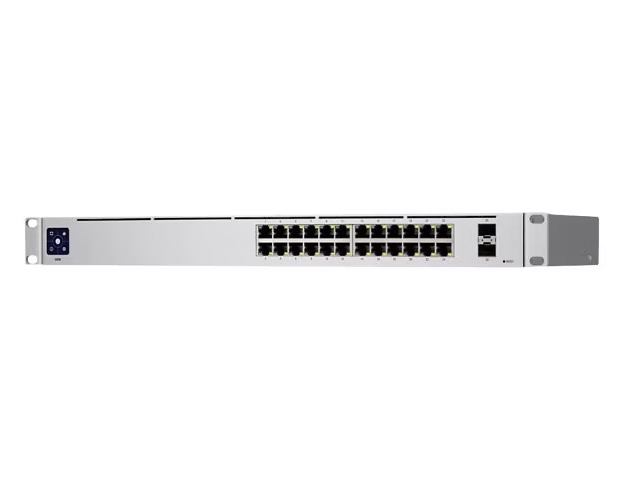

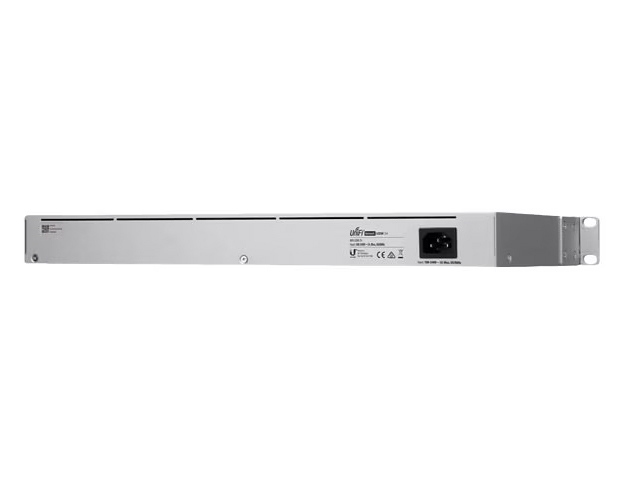

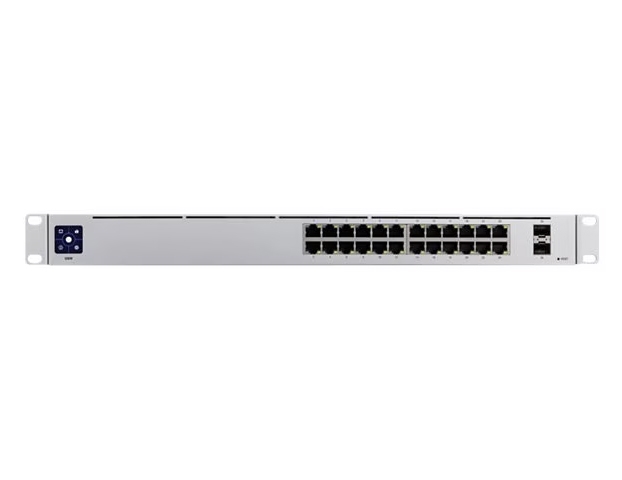

The Ubiquiti UniFi Switch USW-24 is a Layer 2 switch with 24 1 Gbps RJ45 ports, 2 1 Gbps SFP ports, a total non-blocking throughput of 26 Gbps, and a switching capacity of 52 Gbps. It features an internal power supply, rack-mount form factor, and is managed via the UniFi Network Controller or mobile app. Note that this model (USW-24) does not include PoE capabilities; the PoE versions are models like the USW-24-POE.

Key Specifications

• Ports:
  • 24 x 1 Gbps Ethernet RJ45 ports
  • 2 x 1 Gbps SFP ports

• Performance:
  • Total Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps

• Power:
  • Internal Power Supply (Universal AC Input: 100-240V AC)
  • Max. Power Consumption: 25W

• Management:
  • Managed via the UniFi Network Controller and mobile app
  • Ethernet In-Band management interface

• Physical:
  • Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72 inches)
  • Form Factor: 1U Rack-mountable
  • Material: SGCC Steel

• Environment:
  • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F)

Important Distinction
The base USW-24 model is a non-PoE switch, meaning it cannot power other devices over Ethernet. For power over Ethernet capabilities, you would need to look at models such as the UniFi Switch 24 PoE (USW-24-POE).
