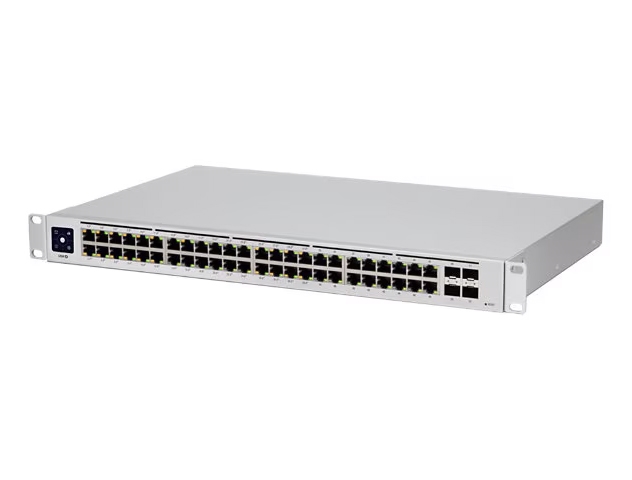

The Ubiquiti UniFi Switch USW-48-PoE is a managed 1U rack-mountable Gigabit switch with 48 x 1 Gbps RJ45 ports, 32 of which support 802.3af/at PoE, and four 1 Gbps SFP ports for uplinks. It features 52 Gbps of non-blocking throughput and a switching capacity of 104 Gbps. The switch requires a 100-240V AC power input and has a maximum power consumption of 45W (excluding PoE output).

Key Specifications

• Ethernet Ports: 48 x 1 Gbps RJ45 ports
• PoE Ports: 32 ports
• PoE Standards: IEEE 802.3af (PoE) and 802.3at (PoE+)
• SFP Ports: 4 x 1 Gbps SFP
• Non-Blocking Throughput: 52 Gbps
• Switching Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps
• Power Method: Internal Universal PSU, 100-240V AC, 50/60 Hz
• Max Power Consumption (excluding PoE output): 45W

Physical & Environmental

• Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72 inches)
• Weight: Approximately 4.52 kg (9.97 lb) with brackets
• Form Factor: 1U Rack-mountable
• Operating Temperature: -5°C to 40°C (23°F to 104°F)
