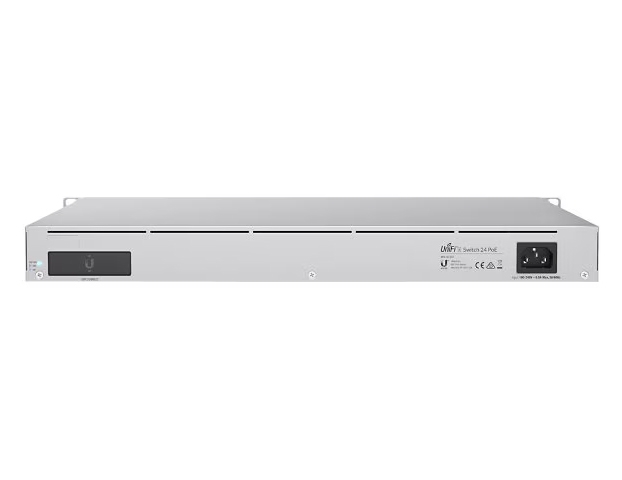

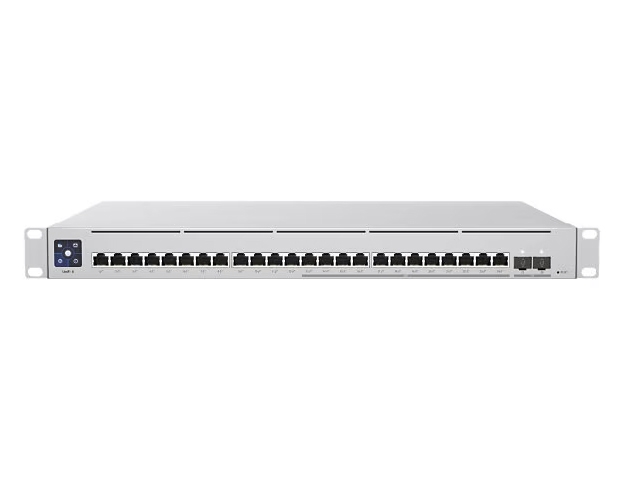

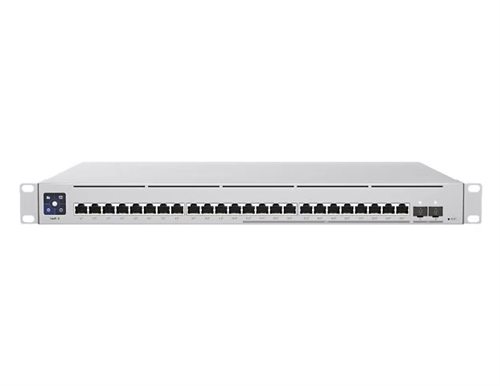

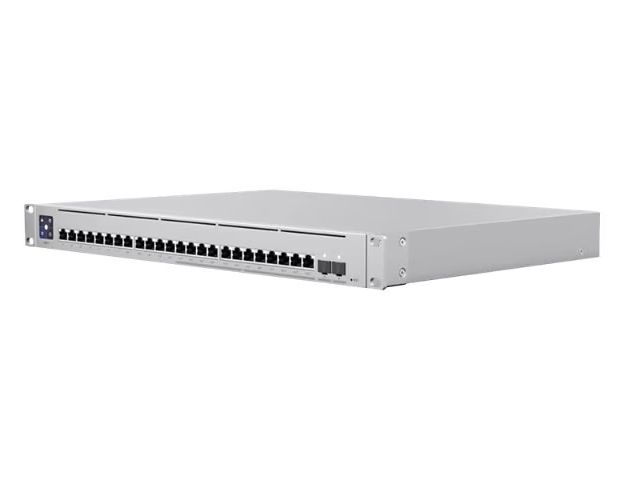

The UniFi Switch Enterprise 24 PoE is a managed Layer 3 switch featuring (12) 2.5GbE PoE+ ports, (12) 1GbE PoE+ ports, and (2) 10G SFP+ uplink ports, capable of providing 400W of total PoE power. It boasts 124 Gbps switching capacity and a 62 Gbps non-blocking throughput, along with a 1.3" LCM color touchscreen for management. The switch supports power redundancy via an optional USP RPS DC input and is managed through the UniFi Network Application.

Key Specifications

Ports:

· 12 x 2.5 GbE, PoE+ RJ45 ports

· 12 x 1 GbE, PoE+ RJ45 ports

· 2 x 10G SFP+ ports

Performance:

· Switching Capacity: 124 Gbps

· Total Non-Blocking Throughput: 62 Gbps

· Forwarding Rate: 92 Mpps (92.25 Mpps)

PoE:

· Total Available PoE Power: 400W

· Supports IEEE 802.3af/at PoE+

Power:

· Universal AC Input: 100-240VAC

· Supports USP-RPS DC input for power redundancy

Management:

· Layer 3 Managed Switch

· 1.3" LCM Color Touchscreen

· Centrally managed by the UniFi Network Application

Physical:

· Dimensions: 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8 inches)

· Weight: 5.11 kg (11.27 lb)

· Enclosure Material: SGCC Steel
