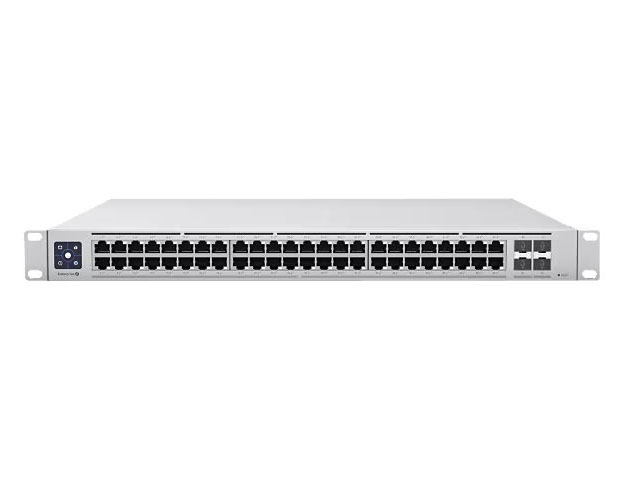

The Ubiquiti USW-Enterprise-48-PoE is a managed Layer 3 switch with 48 2.5GbE RJ45 ports, all supporting PoE/PoE+, and 4 10Gb SFP+ uplink ports, providing a total PoE budget of 720W. It features a 320 Gbps switching capacity, 238 Mpps forwarding rate, a 1.3" color touchscreen, and supports redundant power via a UniFi SmartPower RPS.

Key Features:

• Ports: 48 x 2.5GbE RJ45 PoE+ ports and 4 x 1G/10G SFP+ ports.
• PoE Budget: 720W, supporting IEEE 802.3af/at standards.
• Layer 3 Functionality: Offers advanced routing capabilities.
• Switching Performance: 320 Gbps switching capacity and 238.095 Mpps forwarding rate.
• Display: Integrated 1.3" LCM color touchscreen for system insights.
• Redundant Power: Connects to a UniFi SmartPower RPS for power redundancy.
• Management: Managed through the UniFi Network Controller.

Hardware Specifications:

• Dimensions: 442 x 44 x 400 mm (17.4 x 1.7 x 15.7 in).
• Weight: 6.3 kg (13.89 lb) with mounting brackets.
• Enclosure: SGCC steel.

Power Specifications:

• Input: Universal AC input (100-240V AC) and USP RPS DC input.
• Max Consumption: 150W (excluding PoE output).

Environmental:

• Operating Temperature: -5°C to 40°C (23°F to 104°F).
• Operating Humidity: 10–90% non-condensing.
