The Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE) is a Layer 3 switch featuring eight 2.5GbE PoE+ RJ45 ports and two 10GbE SFP+ ports for uplinks. It has a 120W total PoE power budget, a 1.3-inch color touchscreen for management, and can be managed via the UniFi Network application. The switch is not rack-mountable and has a dimensions of 200 x 248 x 44 mm.

Key Features

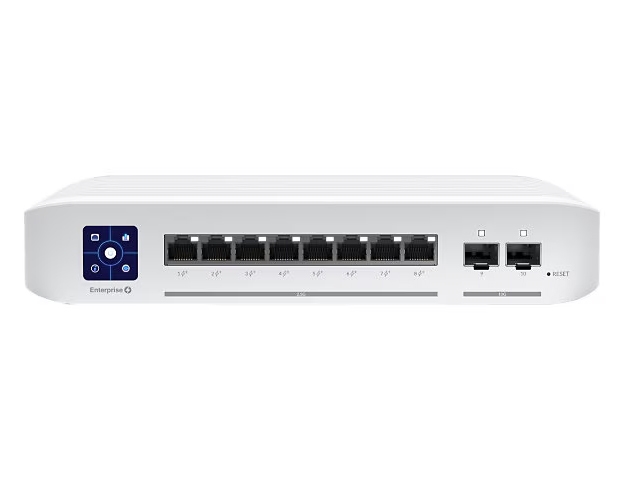

• Ports:
• 8 x 2.5GbE PoE+ RJ45 ports
• 2 x 10G SFP+ ports
• PoE Capabilities:
• 120W total power budget
• Supports IEEE 802.3at (PoE+) standard on the 2.5GbE ports
• Management & Interface:
• 1.3" color touchscreen LCM display
• Fully managed, Layer 3 switch
• Manageable through the UniFi Network web and mobile applications
• Networking Performance:
• 40 Gbps total non-blocking throughput
• 80 Gbps switching capacity
• Physical Characteristics:
• Dimensions: 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
• Desktop-mountable
• Polycarbonate enclosure
• Power:
• Internal 150W power supply

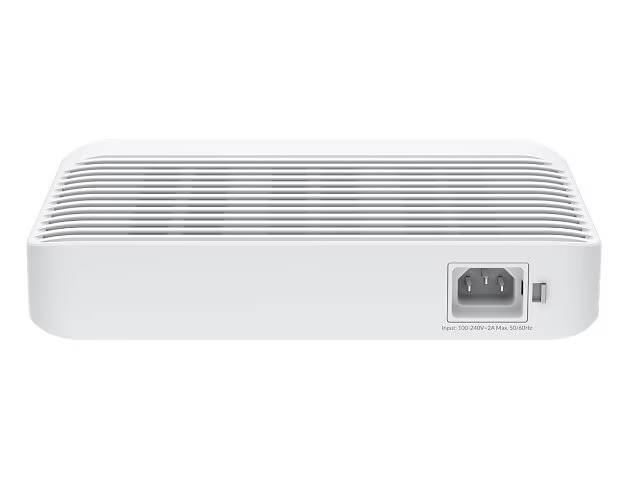

• Universal AC input (100—240V AC, 2A Max., 50/60 Hz)
• Operating Conditions:
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 10 to 90% non-condensing
