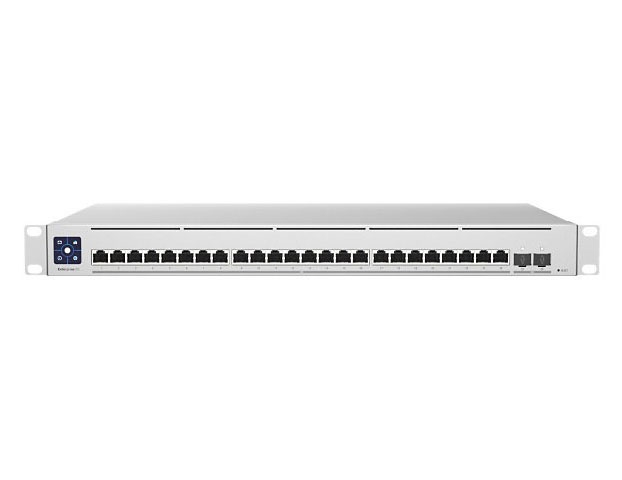

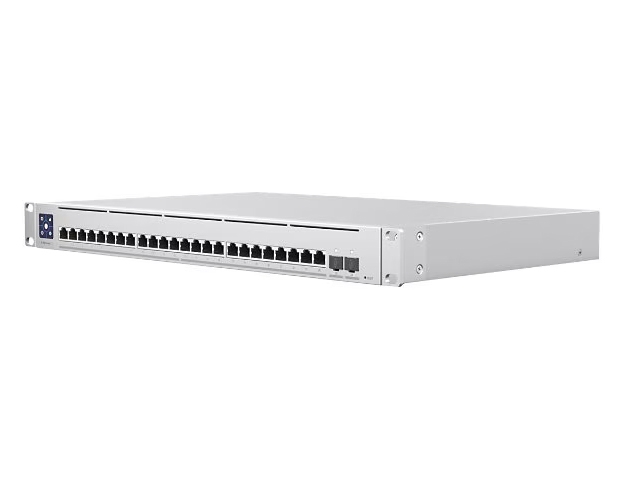

The Ubiquiti USW-ENTERPRISEXG-24 is a fully managed, Layer 3 switch featuring 24 x 10GbE RJ45 ports, two 25G SFP28 fiber uplink ports, a 1.3-inch color touchscreen, and support for the UniFi Network Application. With a total non-blocking throughput of 290 Gbps and a switching capacity of 580 Gbps, it is designed for enterprise networks requiring high-bandwidth performance and offers features like Layer 3 routing and support for the SmartPower Redundant Power System (USP-RPS).

Key Specifications

• Ports:
• 24 x 10 GbE RJ45 ports
• 2 x 25G SFP28 fiber ports
• Performance:
• Switching Capacity: 580 Gbps
• Total Non-Blocking Throughput: 290 Gbps
• Forwarding Rate: 431.52 Mpps
• Layer:
• Layer 3 managed switch
• Hardware:
• Dimensions: 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
• Enclosure Material: SGCC steel

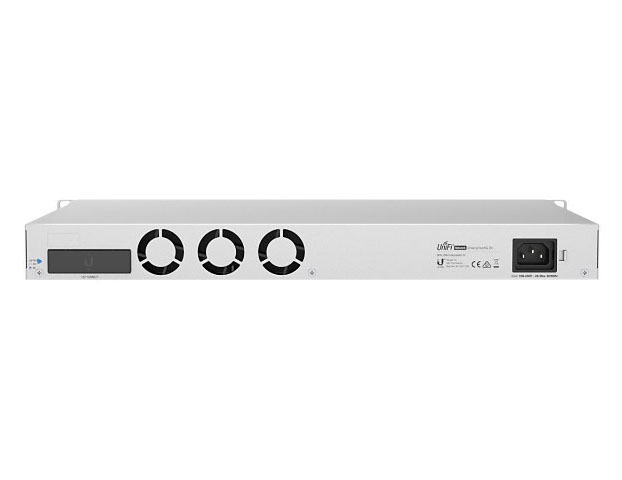

• Power Method: Internal 100W power supply, support for USP-RPS
• Touchscreen: 1.3-inch LCM color touchscreen for management
• Management:
• Fully managed via the UniFi Network application and mobile app
• Form Factor: Rack-mountable
