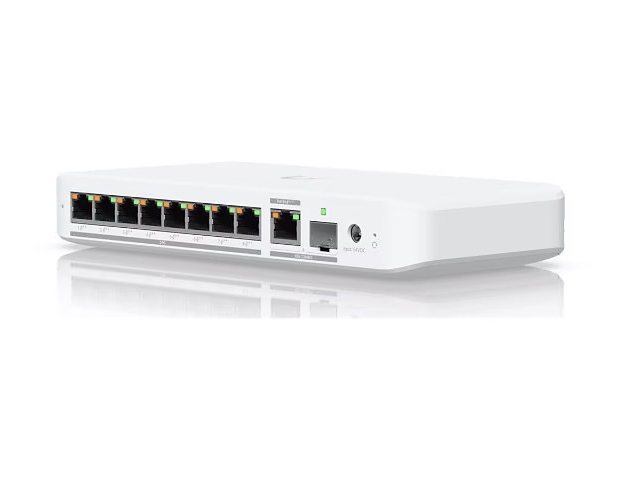

The Ubiquiti USW-FLEX-2.5G-8-POE is an 8-port 2.5 GbE PoE++ managed switch with a 10 GbE SFP+/RJ45 combo uplink port. It supports Layer 2 features, can be powered by PoE+++ or an AC adapter, and provides a flexible power budget up to 76W (PoE+++) or 196W (with a 210W AC adapter) for its PoE++ ports. Key specs include a 60 Gbps switching capacity, 45 Mpps forwarding rate, a 4K MAC address table, and multiple mounting options.

Key Features & Specifications

• Ports: 8 x 2.5 GbE PoE++ ports and 1 x 10 GbE SFP+/RJ45 combo port
• Power: Powered by PoE+++ or an AC adapter
• PoE Budget: Up to 76W for PoE++ (PoE+++ input), 46W (PoE++ input), 16W (PoE+ input), or 196W (210W AC adapter)
• Performance:
• 60 Gbps switching capacity
• 30 Gbps non-blocking throughput
• 45 Mpps forwarding rate
• 4K MAC address table size
• Layer 2 Features: Supports VLANs (up to 256), STP, RSTP, storm control, flow control, port isolation, and port mirroring
• Management: Managed via the UniFi Network Application
• Form Factor: Compact desktop, wall, DIN rail, and magnetic mounting options
• Dimensions: 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3 inches)
• Material: Polycarbonate enclosure
• Operating Temperature: -20 to 45°C (-4 to 113°F)
