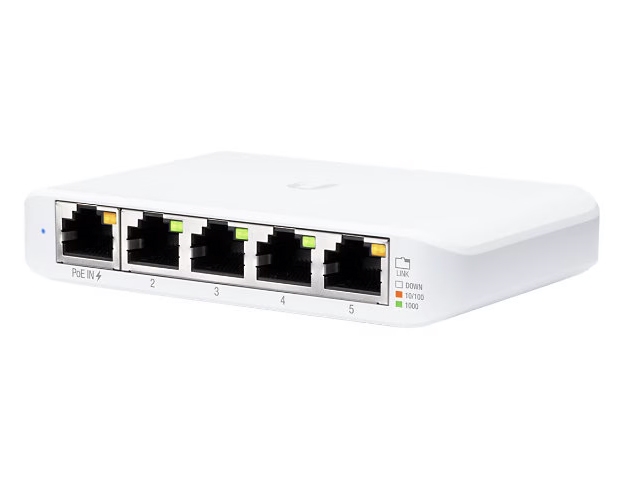

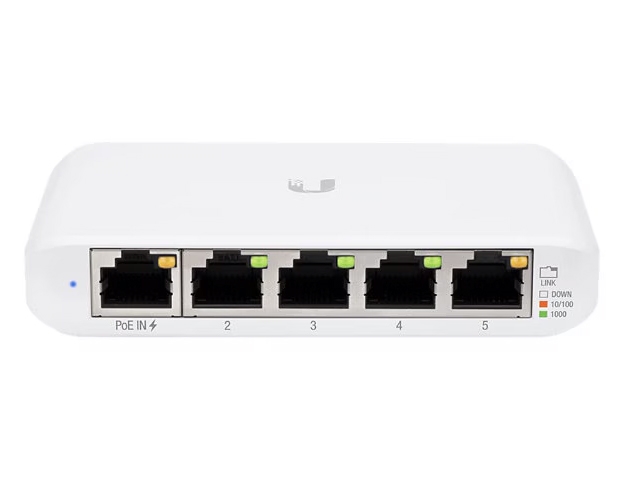

The Ubiquiti UniFi Switch USW-Flex-Mini is a 5-port, smart-managed Gigabit Ethernet switch designed for compact deployment, featuring five 10/100/1000 Mbps RJ45 ports with one port supporting 802.3af/at PoE input. It has a maximum power consumption of 2.5W and can be powered via a USB-C adapter or PoE. The switch provides a non-blocking throughput of 5 Gbps, a 10 Gbps switching capacity, and a forwarding rate of 7.44 Mpps, and is managed through the UniFi Network Controller platform.

Key Specifications

• Port Quantity : 5 x 10/100/1000 Mbps RJ45 ports
• PoE Input : One port supports 802.3af/at PoE (Pins 1, 2+; 3, 6-)

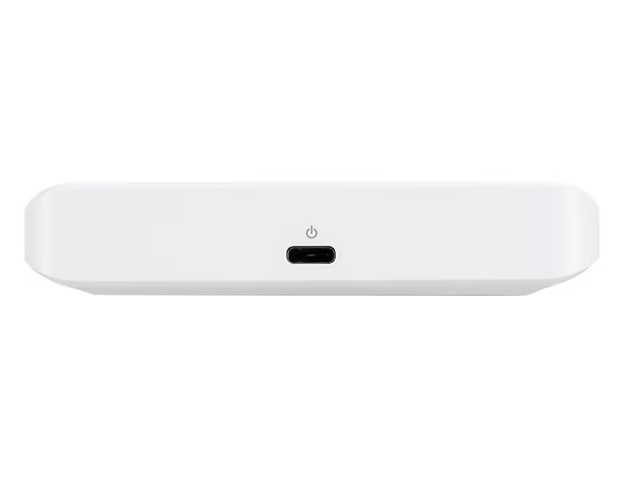

• Power Method : USB Type-C, 5V, or 802.3af/at PoE
• Max Power Consumption : 2.5W
• Switching Capacity : 10 Gbps
• Total Non-Blocking Throughput : 5 Gbps
• Forwarding Rate : 7.44 Mpps
• Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83 inches)
• Weight: 150 g (5.29 oz)
• Management: Through the UniFi Network Controller platform
• Design: Compact, fanless desktop design
• LEDs: Status, Speed/Link/Activity

Features

• Compact Design : Fits easily into various environments without being intrusive.
• Managed Switching : Allows for configuration of settings like VLANs and port settings via the UniFi Controller.
• Dual Power Options : Offers flexibility by supporting both a standard USB-C power adapter and PoE input.
• Centralized Management : Seamless integration with the UniFi system for management and monitoring.
