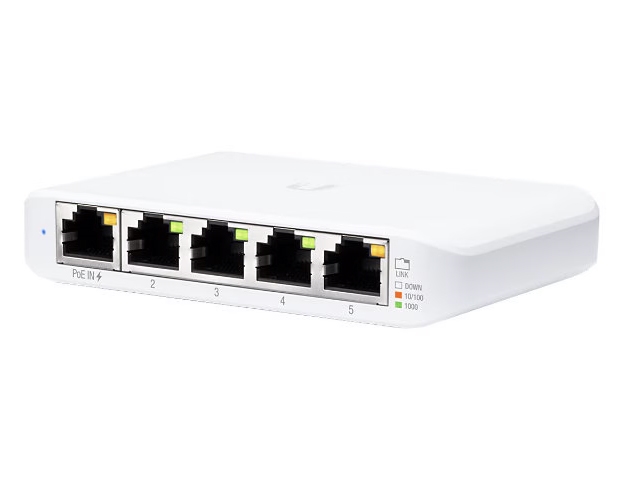

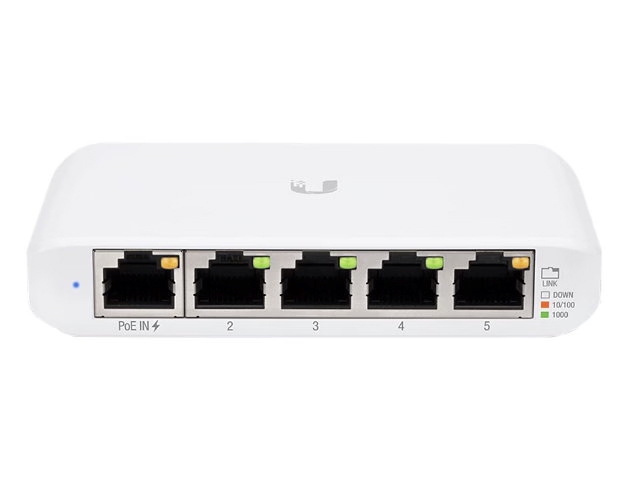

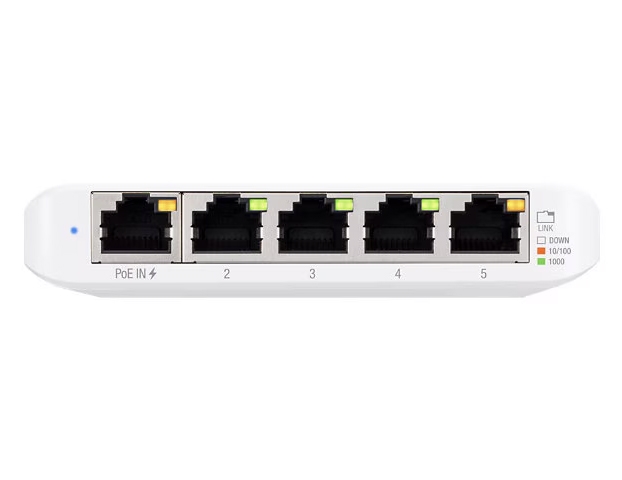

The UniFi USW-Flex-Mini is a compact, 5-port Layer 2 Gigabit managed switch with a maximum power consumption of 2.5W, powered by USB-C or 802.3af/at PoE-in. It features a non-blocking throughput of 5 Gbps, a switching capacity of 10 Gbps, and a forwarding rate of 7.44 Mpps. Its dimensions are 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83 inches) and it weighs 150g (5.3 oz).

Key Specifications

• Brand: Ubiquiti Networks
• Product Line : UniFi
• Model: USW-Flex-Mini
• Ports: (5) 10/100/1000 Mbps RJ45 Ports
• PoE Input : One port supports 802.3af/at PoE input
• Power Method : USB Type-C or 802.3af/at PoE
• Max Power Consumption : 2.5W
• Total non-blocking throughput : 5 Gbps
• Switching capacity : 10 Gbps
• Forwarding rate : 7.44 Mpps
• Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
• Weight: 150 g (5.29 oz)
• Enclosure Material : Polycarbonate
• Cooling: Fanless design
• Management: Layer 2 managed via the UniFi Network Controller
• Certifications: CE, FCC, IC, Anatel
