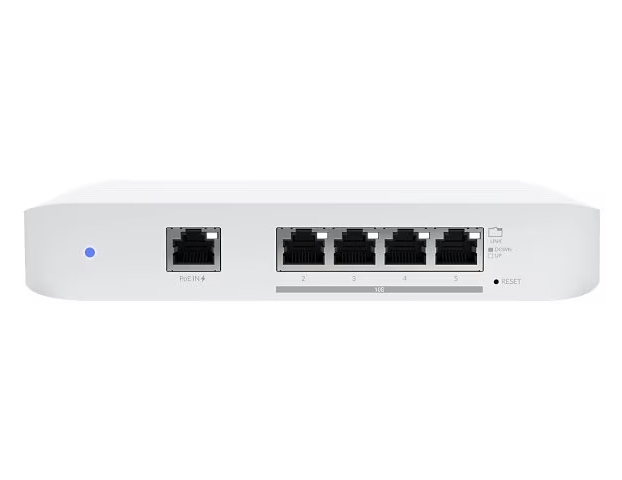

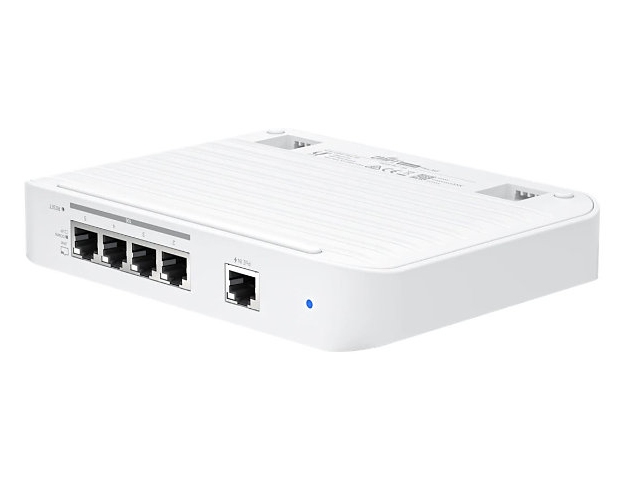

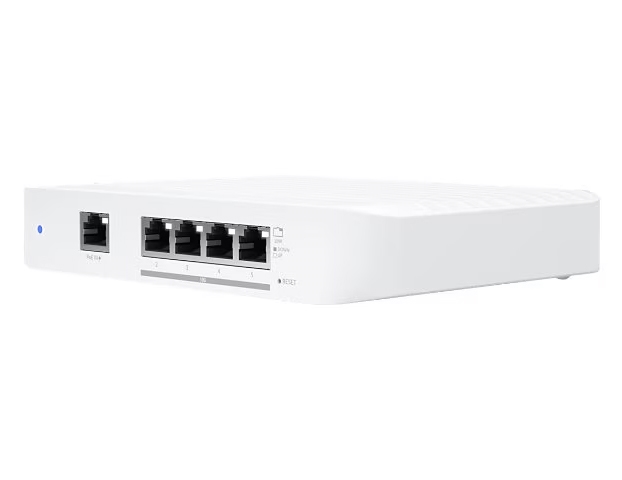

The Ubiquiti USW-Flex-XG is a compact, 5-port, managed Layer 2 switch with four 10 GbE RJ45 ports and one 1 GbE PoE+ input port. It can be powered by PoE+ or a 5V USB-C adapter and offers a switching capacity of 82 Gbps. The device is managed via the UniFi Network application and features a slim, desktop-friendly housing.

Key Specifications:

• Ports: 1 x 1 GbE PoE+ input port, 4 x 10 GbE RJ45 ports
• Management: Fully managed, Layer 2
• Power:
• 802.3at PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
• 5V DC, 5A USB-C adapter (included)
• Performance:
• Switching Capacity: 82 Gbps
• Forwarding Rate: 61.012 Mpps
• Physical:
• Dimensions: 5.3"L x 7.3"W x 1.3"H
• Compact, slim housing suitable for desktop mounting

Features & Capabilities:

• Multi-Gigabit Connectivity:  Supports high-speed 10 GbE connections on four ports.

• UniFi Network Management:  Easily monitor and configure the switch from anywhere using the UniFi Network web application and mobile app.

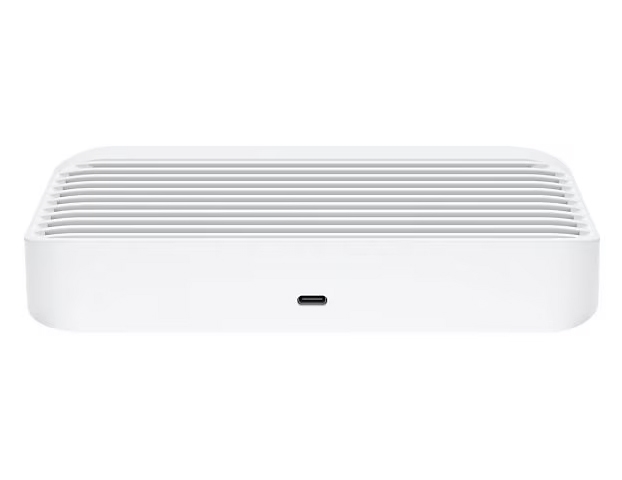

• Flexible Power:  Can receive power through a PoE+ connection or a standard USB-C adapter, providing versatile placement options.

• Layer 2 Features:  Supports advanced configurations like port aggregation, port mirroring, jumbo frames, and 802.1x authentication.

• Compact Design:  Its slim, desktop-friendly form factor makes it ideal for small setups or areas with limited space.
