The Ubiquiti UniFi Switch Flex (USW-Flex) is a 5-port, Layer 2 managed gigabit PoE switch with one PoE-in port and four 802.3af PoE-out ports, supporting up to 46W of total PoE output when powered by a suitable 802.3bt source. It features a compact, weatherproof design for versatile mounting and can be managed via the UniFi Network Controller or mobile app, offering flexible power and networking for various devices.

Key Specifications

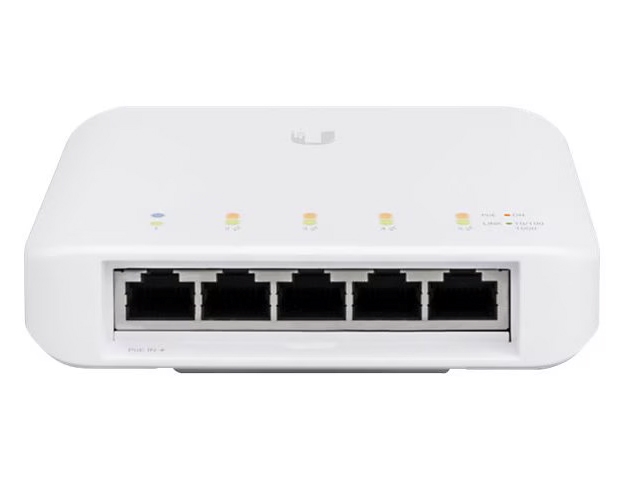

• Port Configuration: 5 x 10/100/1000 Mbps RJ45 Ports
• Management: Ethernet In-Band, Managed Layer 2 via UniFi Network Controller or Mobile App
• Power Input: One PoE-in port
• Power Output: Four 802.3af PoE output ports
• PoE Budget:
• Up to 8W with 802.3af power input
• Up to 20W with 802.3at power input
• Up to 46W with 802.3bt (PoE++) power input (e.g., 60W injector or switch)
• Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10")
• Weight: 230 g (8.11 oz)

Key Features

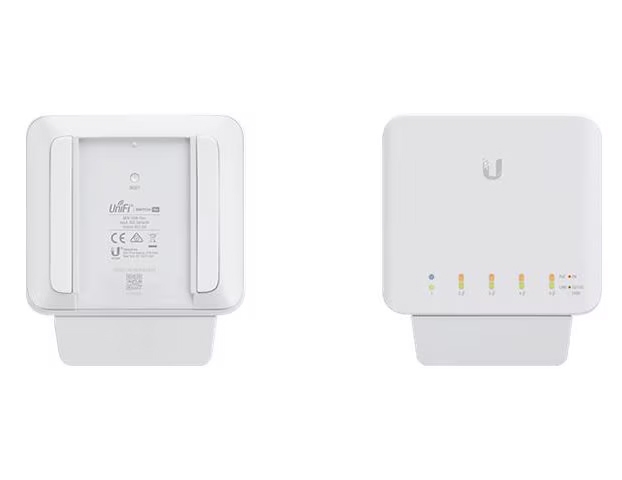

• Flexible Mounting: Can be installed horizontally, vertically, on a wall, or pole.
• Weatherproof: Designed for both indoor and outdoor use.
• PoE Passthrough: Provides power to connected devices like cameras and access points.
• Managed Switching: Utilizes UniFi Network Controller software for configuration and monitoring.

Powering the Switch

• The switch receives its own power via a PoE-in port, which can be from an 802.3af, 802.3at, or 802.3bt source.
• The type of power input affects the total PoE output power budget available for the four PoE-out ports.
• For example, connecting to an 802.3bt source (such as a compatible 60W injector) allows the switch to deliver its maximum 46W PoE output budget.
