The Ubiquiti UniFi Switch Lite 16 PoE is a 16-port, Layer 2 gigabit Ethernet switch with eight auto-sensing PoE+ ports, delivering a total of 45W of power for devices like UniFi Access Points. It features fanless cooling for silent operation, has a 16 Gbps non-blocking throughput, 32 Gbps switching capacity, and is managed via the UniFi Network Application. The switch includes a 60W internal power supply, a universal AC input (100-240V), and a max power consumption of 15W (excluding PoE).

Key Specifications

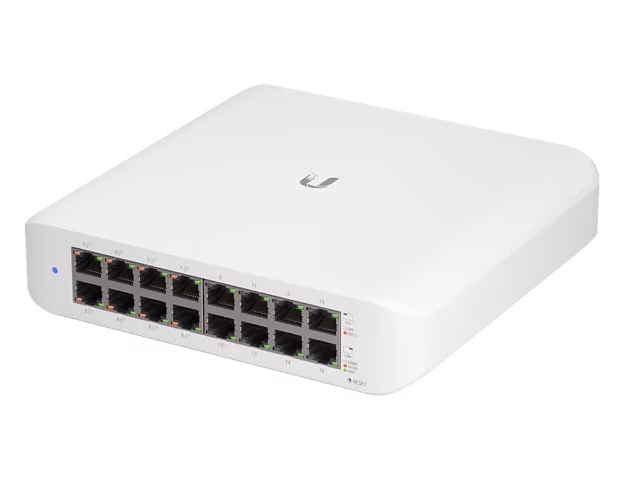

• Ports: 16 x 1 GbE RJ45 ports
• PoE Ports: 8 x Auto-sensing 802.3af/at PoE+ ports
• Total PoE Power: 45W
• Max PoE+ Wattage per Port: 30W
• Switching Type: Layer 2 Managed
• Throughput: 16 Gbps (non-blocking)
• Switching Capacity: 32 Gbps

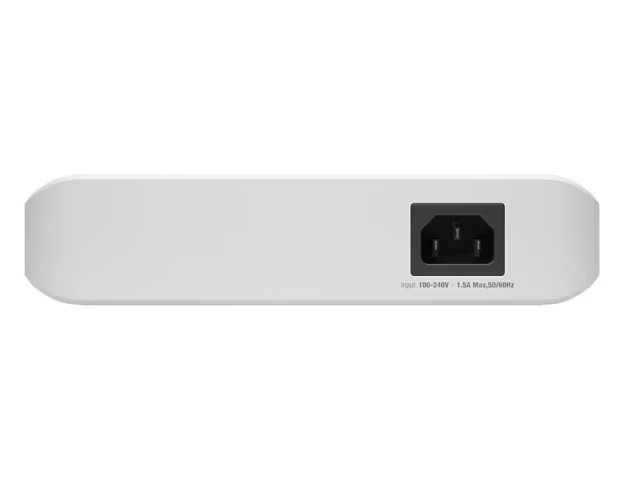

• Power Method: Internal 60W AC/DC Power Supply
• Power Consumption: 15W (excluding PoE)
• Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
• Weight: 1.2 kg (2.65 lb)

Features

• Silent Operation: Fanless design for quiet performance
• Management: Managed by the UniFi Network Application and mobile app

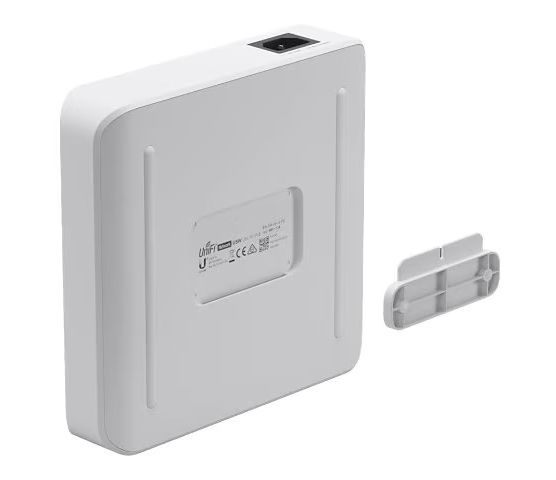

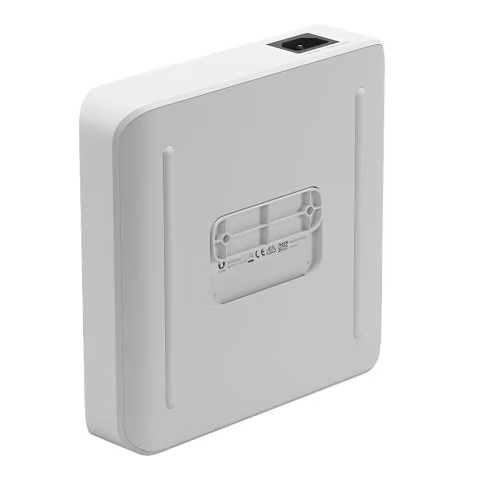

• Mounting: Includes a wall-mount bracket
• Layer 2 Features: Supports IGMP snooping, Spanning Tree, and VLANs
• PoE Standard: Supports IEEE 802.3af and 802.3at (PoE+)

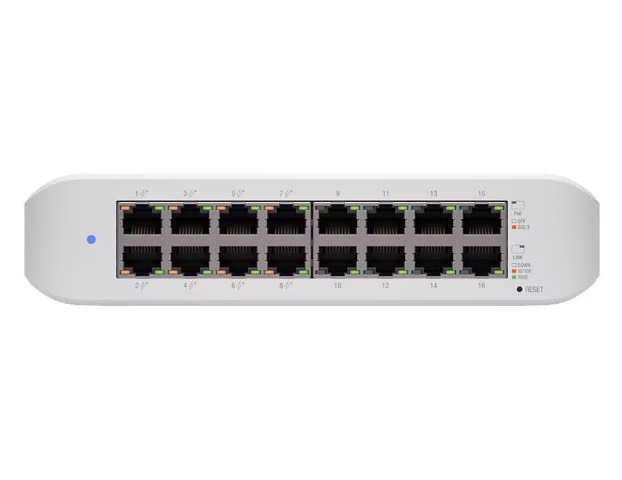

Connectivity

• The network input (uplink) should connect to port 15.
• PoE devices should be connected to ports 1-8.
• Non-PoE devices can be connected to the remaining ports (9-14).
