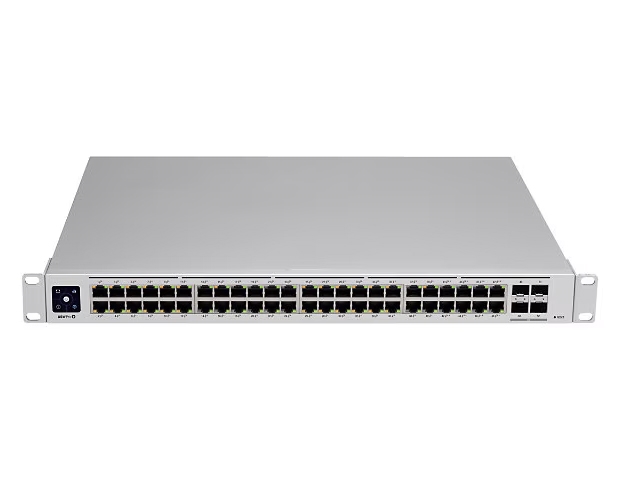

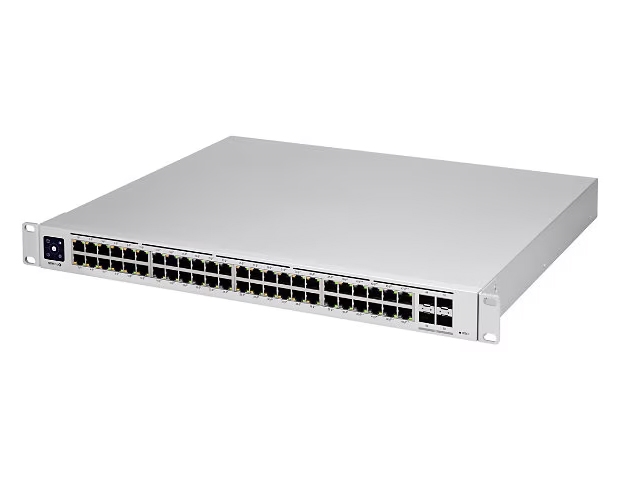

The Ubiquiti UniFi Switch USW-PRO-48-POE is a 48-port, Layer 3 managed switch with Layer 2 and Layer 3 capabilities, providing 48 Gigabit RJ45 ports and four 10G SFP+ ports for high-speed uplinks. It features a 600W total PoE budget, with 40 ports supporting 802.3at PoE+ and eight supporting 802.3bt oE++. The switch includes a 1.3-inch touchscreen, near-silent cooling, supports UniFi SmartPower RPS redundancy, and is managed via the UniFi Network Application.

Key Specifications

• Ports: 48 x 1GbE RJ45, 4 x 1/10Gb SFP+
• PoE: 40 x 802.3at PoE+, 8 x 802.3bt PoE++
• PoE Budget: 600W total
• Switching Capacity: 176 Gbps
• Total Non-Blocking Throughput: 88 Gbps
• Forwarding Rate: 130.944 Mpps
• Management: Managed via UniFi Network Application
• Display: 1.3-inch Touchscreen LCM
• Power: Internal AC/DC power supply, supports UniFi RPS DC input
• Cooling: Near-silent cooling
• Layer Features: Layer 2 and Layer 3 support (e.g., inter-VLAN routing, static routing)
• Dimensions: 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9 inches)
• Enclosure: Rack-mountable, SGCC steel
