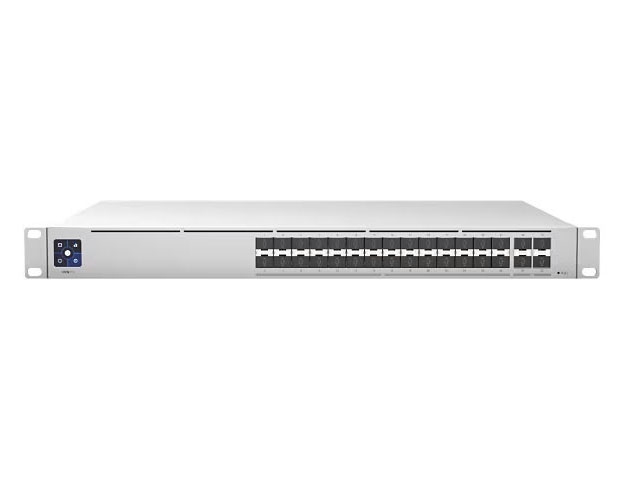

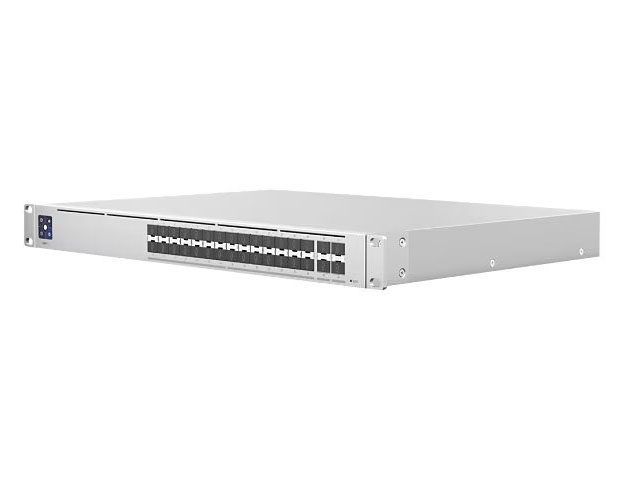

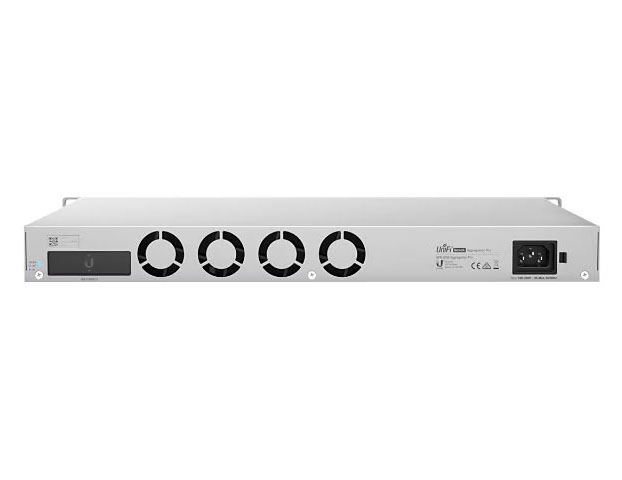

The Ubiquiti UniFi Switch Pro Aggregation (USW-PRO-AGGREGATION) is a 32-port Layer 3 switch with 28x 10Gb SFP+ ports and 4x 25Gb SFP28 uplink ports, offering a 760 Gbps switching capacity and a 380 Gbps non-blocking throughput. It features a 1.3" LCM touchscreen, a 100W internal power supply, and operates in the 23-104°F (-5-40°C) temperature range. This rack-mountable switch supports Layer 3 features like inter-VLAN routing and static routing for high-performance network environments.

Key Specifications

• Ports:

• 28x 10 Gbps SFP+ Ethernet LAN ports

• 4x 25 Gbps SFP28 Ethernet uplink ports (supporting mixed speeds of 1Gbps/10Gbps when not in 25Gbps mode)

• Performance:

• Switching Capacity: 760 Gbps

• Non-blocking Throughput: 380 Gbps

• Forwarding Rate: 565.44 Mpps

• Management & Features:

• Interface: 1.3" LCM touchscreen display

• Switching Type: Layer 3

• Routing: DHCP server, inter-VLAN routing, static routing

• ESD Protection: 12KV contact, 16KV air

• Power & Physical:

• Max. Power Consumption: 100W

• Power Method: (1) Universal AC input, 100-240VAC, 50/60Hz

• Form Factor: 1U rack-mountable

• Dimensions: 17.4" x 12.8" x 1.7"

• Weight: Approximately 10.14 lbs (4.6 kg)

Designed For

This switch is ideal for network environments that require high-bandwidth and high-performance data transfer, such as data centers, large enterprise networks, and other applications where efficient data processing is crucial.
