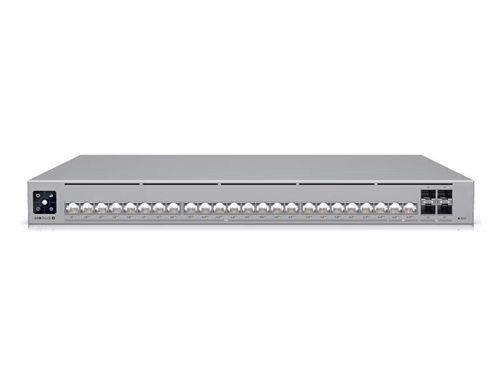

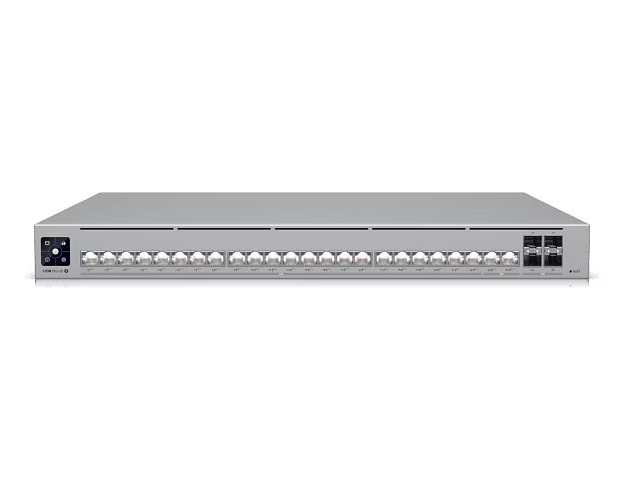

The Ubiquiti USW-Pro-HD-24-PoE is a 24-port, Layer 3 Etherlighting™ switch with a 600W PoE budget, offering 22x 2.5 GbE PoE++ ports and 2x 10 GbE PoE++ ports, plus 4x 10G SFP+ uplinks. It features a 1.3-inch LCM touch screen display, supports high-power PoE++ (up to 60W per port), and is managed via the UniFi Network Application.

Key Specifications

• Ports: 24-port, Layer 3 Etherlighting™ Switch
  • 22 x 2.5 GbE ports (PoE++)
  • 2 x 10 GbE ports (PoE++)
  • 4 x 10G SFP+ ports

• PoE:
  • Total PoE Budget: 600W
  • PoE Standard: IEEE 802.3bt Type 3 (PoE++)
  • Max PoE Power per Port: 60W

• Performance:
  • Switching Bandwidth: 230 Gb/s
  • Forwarding Rate: 171 Mpps

• Features:
  • Etherlighting™: Ports illuminate to indicate status, speed, and network.
  • Layer 3: Supports Layer 3 switching.
  • Management: Managed via the UniFi Network Application.
  • Display: 1.3-inch LCM touchscreen display.
  • Redundancy: Ready for UniFi Redundant Power System (RPS) backup.

• Rack Mountable: Yes, designed for 1U rack installation.
• Cooling: Active cooling with four fans.
