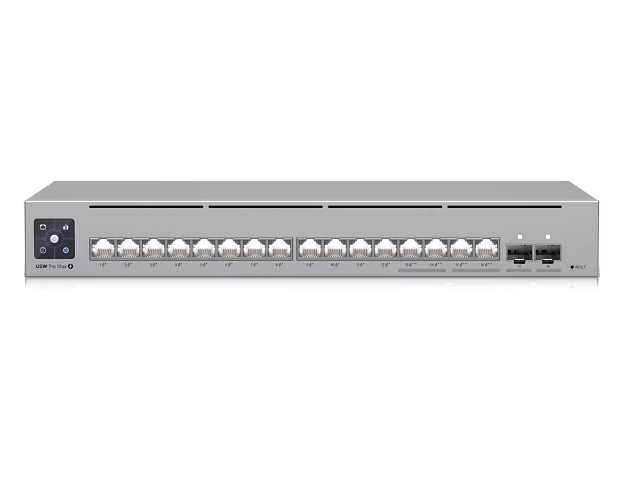

The Ubiquiti UniFi Switch Pro Max 16 PoE is a 16-port, Layer 3 switch featuring 12 GbE PoE+ ports, 4 x 2.5 GbE PoE++ ports, and 2 x 10 GbE SFP+ uplink ports. It offers a 180W PoE budget, Etherlighting for port visualization, and supports various mounting options, including desktop, wall, and rack-mount configurations. The switch has a 42 Gbps non-blocking throughput, a 84 Gbps switching capacity, and a 62.496 Mpps forwarding rate.

Key Specifications
Ports:

• 12 x GbE RJ45 ports (PoE+)
• 4 x 2.5 GbE RJ45 ports (PoE++)
• 2 x 10 GbE SFP+ ports

• 180W total PoE availability

• Total non-blocking throughput: 42 Gbps
• Switching capacity: 84 Gbps
• Forwarding rate: 62.496 Mpps

• Layer 3 switching: Provides routing capabilities.
• Etherlighting: Utilizes color-coded LEDs to indicate port location, speed, and link status.
• Versatile Mounting: Can be configured as a desktop, wall-mounted, or rack-mounted switch.
• PoE++: The 2.5 GbE ports provide higher power delivery.
• Silent, Fanless Cooling: Operates quietly without a fan.

Applications

• This switch is ideal for high-performance networks requiring both high-speed connectivity and extensive PoE support.
• The Etherlighting feature and advanced management capabilities within the UniFi network ecosystem enhance network management and troubleshooting.
