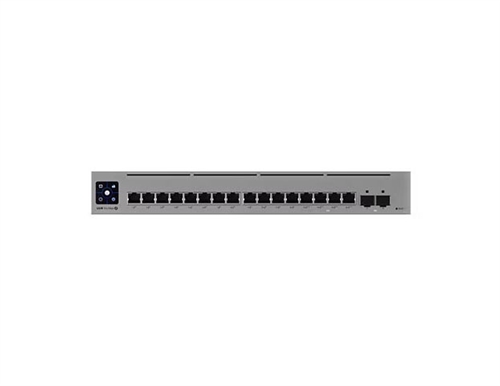

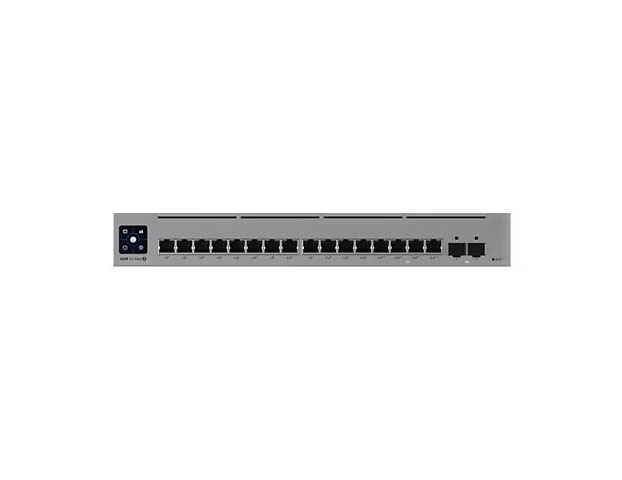

The Ubiquiti USW-PRO-MAX-16 is a 16-port Layer 3 Etherlighting™ switch featuring (12) GbE RJ45, (4) 1/2.5 GbE RJ45, and (2) 10G SFP+ ports, with a total non-blocking throughput of 42 Gbps. It includes a 1.3-inch touchscreen, uses an external 25W USB-C power adapter, and supports Layer 2/3 switching, inter-VLAN routing, static routing, DHCP relay, and features Etherlighting™ for port identification.

Key Specifications

• Networking Ports:
• (12) 1 GbE RJ45 Ports
• (4) 1/2.5 GbE RJ45 Ports
• (2) 10G SFP+ Ports
• Performance:
• Total Non-blocking Throughput: 42 Gbps
• Switching Capacity: 84 Gbps
• Forwarding Rate: 62.496 Mpps
• Management Interface: Ethernet In-Band
• Layer 3 Features:
• DHCP for locally-managed networks
• DHCP relay
• Inter-VLAN routing
• Static routing between local networks
• Network isolation with ACLs
• Etherlighting™: Illuminates to indicate port location, speed/link, and native VLAN/network
• Display: 1.3-inch touchscreen LCM display
• Power:
• Power Method: USB Type-C adapter
• Power Supply: 5V DC, 25W
• Max Power Consumption: 25W
• Mechanical:
• Enclosure Material: SGCC steel
• Dimensions: 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
• Weight: 1.95 kg (4.3 lb)
• Environmental:
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10 to 90% non-condensing
• Mounting Options: Rack mount (1U), desktop, wall-mount
