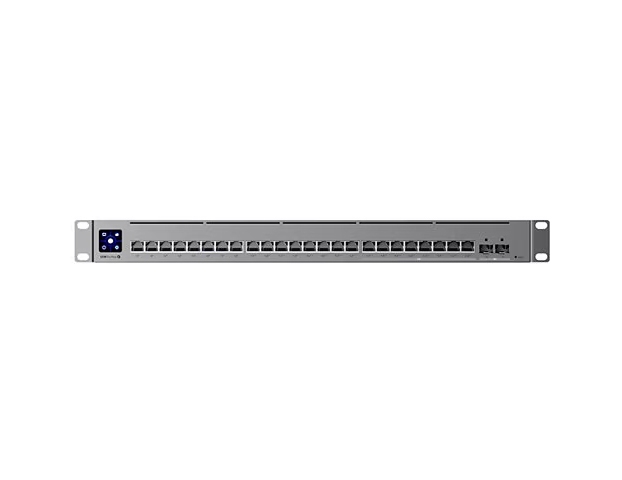

Ubiquiti Pro Max A 24-port Layer 3 Etherlight Switch with 2.5GbE and PoE++ Output.

The Ubiquiti UniFi Pro Max 24 PoE switch is a Layer 3 Etherlighting switch with 24 ports: 8x 2.5 GbE PoE++ ports, 8x GbE PoE++ ports, 8x GbE PoE+ ports, and 2x 10G SFP+ ports. It offers a 400W total PoE budget, a non-blocking throughput of 56 Gbps, and a 112 Gbps switching capacity. The switch features Etherlighting ports that visually display network status and is powered by the UniFi Network application.

Key Features & Specs

• Ports:
• 8x 2.5 GbE RJ45 PoE++ ports
• 8x 1 GbE RJ45 PoE++ ports
• 8x 1 GbE RJ45 PoE+ ports
• 2x 10G SFP+ ports
• Performance:
• Total Non-Blocking Throughput: 56 Gbps
• Switching Capacity: 112 Gbps
• Power:
• Total PoE Availability: 400W
• PoE Standards: Supports PoE and PoE++ (802.3af, 802.3at, 802.3bt)
• Etherlighting™: Ports provide visual indicators for port location, speed, link status, and network.
• Management: Managed via the UniFi Network application.
• Redundancy: Supports DC power backup via a USP-RPS (UniFi Smart Power Redundant Power Supply) input.
• Form Factor: 1U rack-mountable.
• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches).
