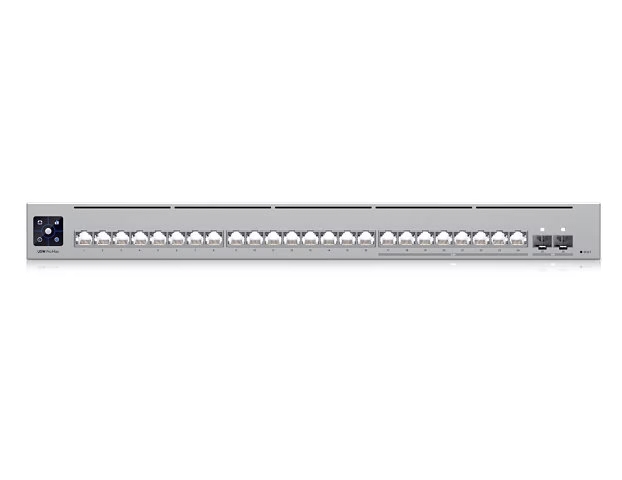

The UniFi Pro Max 24 (USW-Pro-Max-24) is a Layer 3 managed switch featuring 16 1GbE RJ45 ports, 8 2.5GbE RJ45 ports, and 2 10G SFP+ ports, providing 56 Gbps of non-blocking throughput and 112 Gbps of switching capacity. It includes a 1.3" touchscreen display for management, Layer 3 routing capabilities, and advanced features like Etherlighting™ for status indication. The switch also supports a UniFi network environment and has a universal power input with a built-in 50W power supply.

Ports & Performance

• Ethernet: (16) 1GbE RJ45 ports, (8) 2.5GbE RJ45 ports
• SFP+: (2) 10G SFP+ ports
• Throughput: 56 Gbps non-blocking
• Capacity: 112 Gbps switching capacity

Hardware & Management

• Display: 1.3-inch LCM touchscreen
• Layer: Layer 3 Managed Switch
• Feature: Etherlighting™ for status indicators on ports
• Power: Internal 50W power supply with universal AC input

Physical & Environmental

• Dimensions: 17.4 x 12.8 x 1.7 inches (442 x 325 x 44 mm)
• Rack Mountable: Yes, 1U form factor
• Operating Temperature: 23°F to 104°F (-5°C to 40°C)
• Humidity: 10% to 90% non-condensing

Software & Compatibility

• UniFi Network Version: Requires UniFi Network version 8.0.24 or later
• Advanced Features: Includes Layer 3 routing protocols (OSPF, BGP, RIP), port isolation, VLANs, and more.
