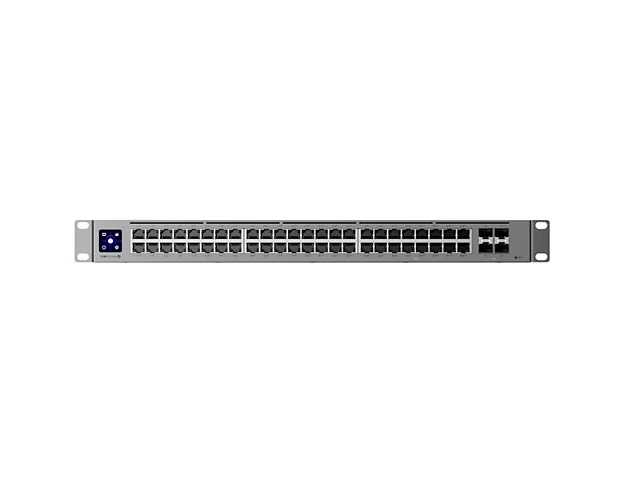

The Ubiquiti USW-Pro-Max-48-PoE is a Layer 3 switch with 52 total ports, including 16 x 2.5 GbE ports, 32 x GbE ports, and 4 x 10G SFP+ ports. It features Etherlighting™ ports, supports PoE++ with a 720W total budget, and has a switching capacity of 224 Gbps with a forwarding rate of 167 Mpps. The switch is managed with the UniFi Network application and is designed for rack mounting.

Key Specifications

• Layer: Layer 3
• Ports:
• 16 x 2.5 GbE ports (8 with PoE+, 8 with PoE++)
• 32 x GbE ports (24 with PoE+, 8 with PoE++)
• 4 x 10G SFP+ ports
• PoE:
• PoE++ and PoE+ support
• 720W total PoE budget
• Max. PoE wattage per port: 60W (PoE++)
• Features:
• Etherlighting™ ports
• RackMountable
• DC power backup ready
• Performance:
• Switching Capacity: 224 Gbps
• Total Non-Blocking Throughput: 112 Gbps
• Forwarding Rate: 167 Mpps
• Management: Managed with the UniFi Network application
• Physical:
• Dimensions: 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")
• Enclosure Material: SGCC steel
