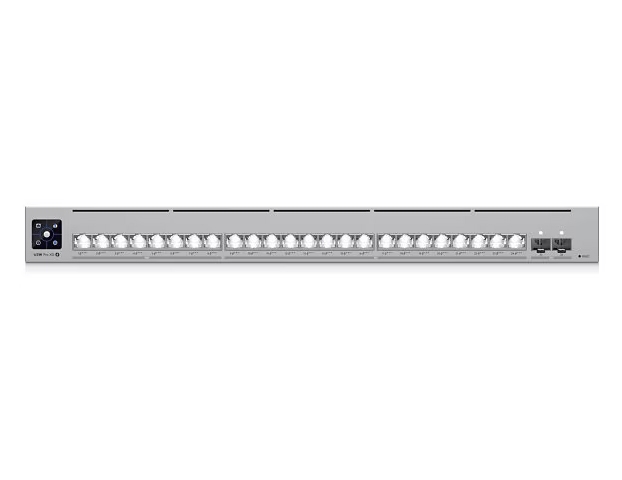

The Ubiquiti USW-Pro-XG-24-PoE is a professional-grade, 24-port Layer 3 switch with 16 x 10 GbE ports, 8 x 2.5 GbE ports (all supporting PoE++), and 2 x 25 GbE SFP28 uplinks. It features a 720W total PoE budget, a 460 Gbps switching capacity, and a 342 Mpps forwarding rate. The switch supports advanced Layer 3 functions like static routing and inter-VLAN routing, includes a 1.3-inch touchscreen LCM for management, and offers dual power input for redundancy.

Key Specifications

• Ports:
• 16 x 1/2.5/5/10 GbE RJ45 PoE+++ ports
• 8 x 1/2.5 GbE RJ45 PoE+++ ports
• 2 x 25 GbE SFP28 uplink ports
• PoE Budget: 720W total, with up to 90W per port
• Switching Capacity: 460 Gbps
• Forwarding Rate: 342 Mpps
• Management: UniFi Network Application, Etherlighting™
• Layer Services: Advanced Layer 3 (static routing, DHCP server, inter-VLAN routing)
• Display: 1.3-inch touchscreen LCM
• Power:
• Universal AC input (100-240V)
• RPS DC input for redundancy
• Dimensions: 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7 inches)
• Certifications: CE, FCC, IC
