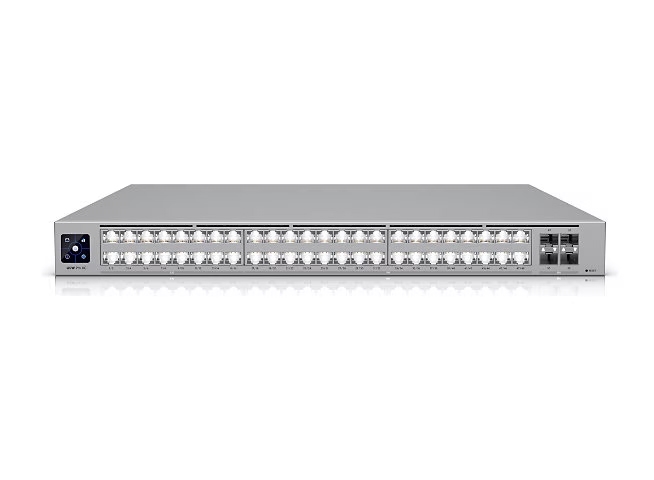

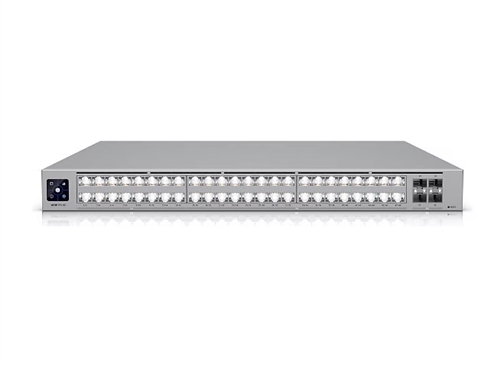

The Ubiquiti UniFi Pro XG 48 PoE (USW-Pro-XG-48) is a Layer 3 managed switch featuring 32 10 GbE PoE+++ ports, 16 2.5 GbE PoE+++ ports, and four 25 GbE SFP28 uplinks. It offers a 920 Gbps switching capacity, 684 Mpps forwarding rate, and up to a 1080W total PoE budget. Key features include an integrated 1.3-inch touchscreen LCM, advanced Layer 3 functions, and support for redundant power via UniFi Smart Power Redundant Power Supplies (USP RPS).

Key Specifications

• Ports:
  • 32 x 10 GbE RJ45 ports (PoE+++)
  • 16 x 2.5 GbE RJ45 ports (PoE+++)
  • 4 x 25 GbE SFP28 uplink ports

• Performance:
  • Switching Capacity: 920 Gbps
  • Total Non-Blocking Throughput: 460 Gbps
  • Forwarding Rate: 684 Mpps
  • MAC Address Table Size: 128,000
  • Packet Buffer Size: 8 MB

• Layer 3 Features:
  • Static Routing
  • DHCP Server
  • Inter-VLAN Routing
  • ARP Entries: 128,000
  • IPv4 Routes: 256,000
  • Supported VLANs: 1,000

• PoE (Power over Ethernet):
  • Supports PoE++ (up to 90W) across all RJ45 ports
  • Up to 1080W total PoE budget

• Management & Monitoring:
  • 1.3" Touchscreen LCM (Liquid Crystal Module) for diagnostics and configuration
  • Managed via the UniFi Network application

• Power:
  • 1350W internal power supply
  • Supports redundant DC input via USP RPS

• Physical & Environmental:
  • Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7 inches)
  • Weight: 8.8 kg (19.4 lbs)
  • Mounting: Rack-mountable
  • Operating Temperature: 0 to 40° C (32 to 104° F)
  • Operating Humidity: 10-90% non-condensing
