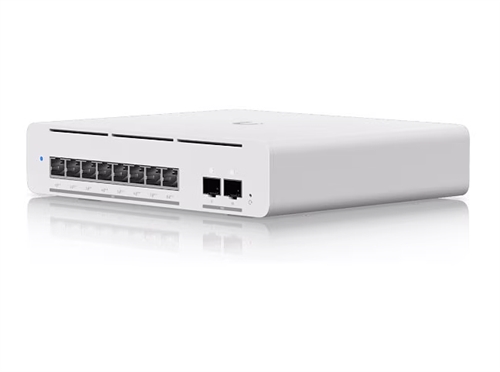

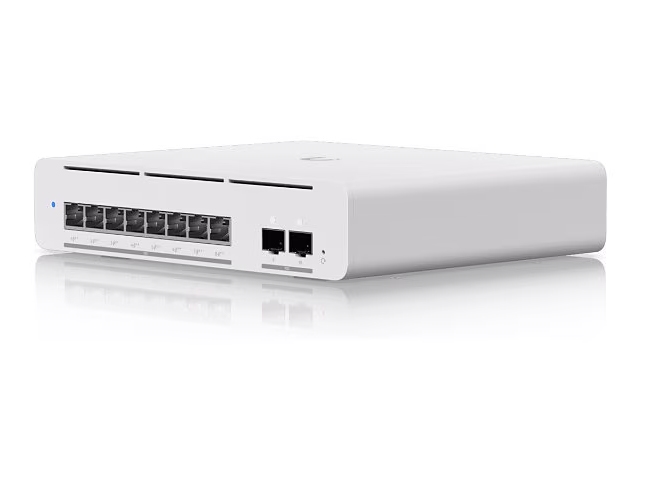

The Ubiquiti UniFi Pro XG 8 PoE (USW-Pro-XG-8-POE) is an 8-port 10 Gigabit Ethernet switch with two 10 Gbps SFP28 uplinks, providing 155W of PoE++ power and a 210W power brick. It supports multi-gigabit speeds (1, 2.5, 5, and 10 Gbps) on all 8 RJ45 ports and features layer 3 management, Etherlighting, and wall or under-desk mounting options.

Key Specifications

• Ports:
  • 8 x 10 GbE RJ45 ports with PoE++ (802.3bt Type 4)
  • 2 x 10 GbE SFP28 ports

• PoE Power:
  • 155W total PoE++ power budget

• Power:
  • Includes a 210W AC power adapter

• Switching Performance:
  • Total Non-Blocking Throughput: 100 Gbps
  • Switching Capacity: 200 Gbps
  • Forwarding Rate: 149 Mpps

• Management:
  • Managed Layer 3 switch
  • Supports Etherlighting™ for port status indicators

• Mounting:
  • Can be desktop, under-table, or wall-mounted

• Physical:
  • Dimensions: 210.4 x 173.8 x 43.7 mm
  • Weight: 1.59 kg (3.51 lbs)

• Other Features:
  • Supports 1000 VLANs
  • MAC Address Table Size: 32,000
